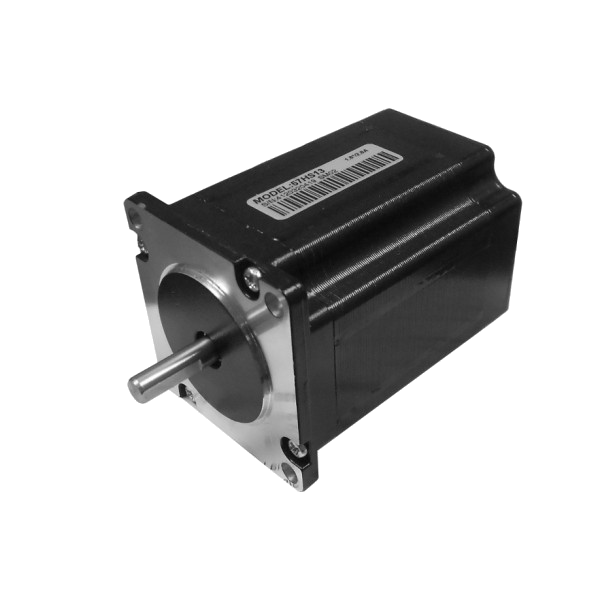

1.8Nm Bipolar Stepper Motor Dual Shaft
The 57HS13D stepper motor is part of a family of motors designed for high performance applications. Product quality is ensured by ISO9001-2000 certified quality control.
| Angular resolution | 1.8° |
| Step positioning accuracy | +5%(full step, no load) |
| Max. temperature | 80°CMax |
| Operating ambient temperature | -10°C -- +50°C |
| Insulation resistance | 100MΩmin.500VDC |
| Dielectric rigidity | 500VAC for 1 minute |
| Radial backlash | 0.06 Max.(under a 450grs load) |
| Axial backlash | 0.08 max.(under a 450grs load) |
|
Number of wires |
8 |
|
Model |
Wiring |
Holding torque Nm(Oz-in) |
Phase current (A) |
Phase resistance (Ohm) | Phase inductance (mH) | Rotor inertia g.cm² (Oz-in-sec²) | Weight Kg |
|
57HS13D |
(Bipolar) Parallel |
1.8 |
4.0 |
0.5±10% | 2.1±20% |
460 (0.006532) | 1.0 |
|
57HS13D
|
(Bipolar) Serie
|
1.8 |
2.0
|
2±10%
| 8.4±20% |
460 (0.006532) | 1.0 |
|
57HS13D
|
Unipolar
|
1.3 |
2.8
|
1±10%
| 2.1±20% |
460 (0.006532) | 1.0 |
Accessories
Your Dynamic Snippet will be displayed here... This message is displayed because you did not provided both a filter and a template to use.
Specifications
| NEMA | 23 |
| Torque | 1.8 Nm |
| Number of phases | 2 |
| Current | 2.8 A |
| Shaft diameter | 6.35 mm |
| Phase resistance (Ohms) | 1.0 Ohm |
| Phase inductance (mH) | 1.6 mH |
| Step angle | 1.8° |
| Shaft | Double |
| Body length | 76 mm |
| Number of wires | 8 |
| Brake | Without brake |
| Weight | 1.0 kg |
