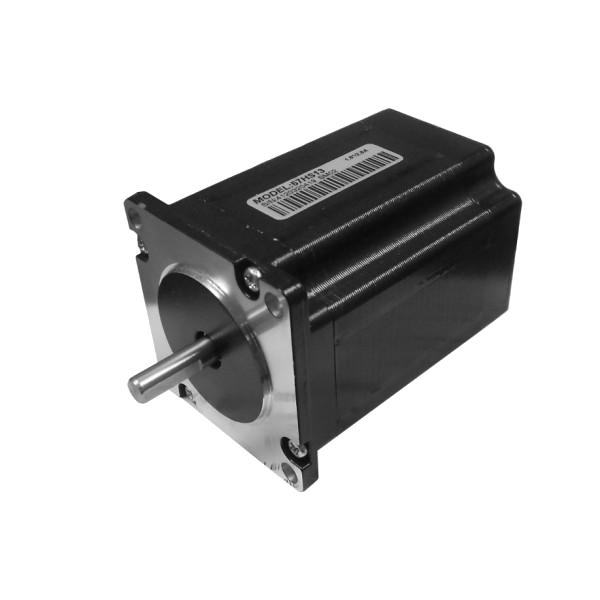

M57HS13D Nema 23 - 1.8 Nm dual shaft stepper motor

Motor 57HS13 Dual Shaft

44.95 € Without Taxes 44.95 EUR 44.95 €

44.95 €

53.94 € 53.94 € with taxes

  • NEMA
  • Torque
  • Number of phases
  • Current
  • Shaft diameter
  • Phase resistance (Ohms)
  • Phase inductance (mH)
  • Step angle
  • Shaft
  • Body length
  • Number of wires
  • Brake
  • Weight

This combination does not exist.

En cours de réapprovisionnement

Product Documents

Datasheet 57HS13D

Internal Reference: M57HS13D

1.8Nm Bipolar Stepper Motor Dual Shaft

The 57HS13D stepper motor is part of a family of motors designed for high performance applications. Product quality is ensured by ISO9001-2000 certified quality control.

Angular resolution 1.8°
Step positioning accuracy +5%(full step, no load)
Max. temperature 80°CMax
Operating ambient temperature -10°C -- +50°C
Insulation resistance 100MΩmin.500VDC
Dielectric  rigidity 500VAC for 1 minute
Radial backlash 0.06 Max.(under a 450grs load)
Axial backlash 0.08 max.(under a 450grs load)
Number of wires
8



Model

Wiring

Holding torque Nm(Oz-in)

Phase current  (A)

Phase resistance  (Ohm)

Phase inductance (mH) Rotor inertia g.cm² (Oz-in-sec²) Weight Kg

57HS13D

(Bipolar) Parallel

1.8
(254.88)

4.0

0.5±10%

2.1±20% 460
(0.006532)
1.0

57HS13D

(Bipolar) Serie

1.8
(254.88)

2.0

2±10%

8.4±20% 460
(0.006532)
1.0

57HS13D

Unipolar

1.3
(184.08)

2.8

1±10%

2.1±20% 460
(0.006532)
1.0




Accessories

Your Dynamic Snippet will be displayed here... This message is displayed because you did not provided both a filter and a template to use.

Specifications

NEMA 23
Torque 1.8 Nm
Number of phases 2
Current 2.8 A
Shaft diameter 6.35 mm
Phase resistance (Ohms) 1.0 Ohm
Phase inductance (mH) 1.6 mH
Step angle 1.8°
Shaft Double
Body length 76 mm
Number of wires 8
Brake Without
Weight 1.0 kg
