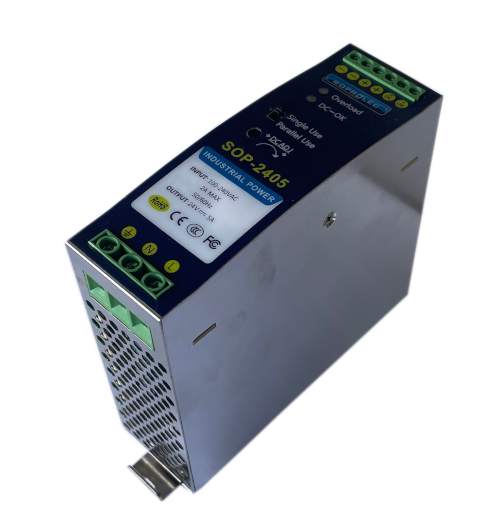

Soprolec DIN rail power supply - 24V 120W (5A)
Input voltage from 90 to 264VAC
Rated output current 5A max.
Output voltage adjustable by potentiometer, from 22.5V to 28V
Protection against overvoltage, overload, and short circuit.
Can be used in parallel.
Internal Reference:
SOP-2405
| Model | SOP-2405 |
|---|---|
| Output | |
| DC Voltage | 24V |
| Rated Current | 5A |
| Current Range | 0~5A |
| Rated Power | 120W |
| Ripple & Noise (max.) | 100mVp-p |
| Voltage Tolerance | +-1% |
| Line regulation | +-0.5% |
| Load regulation | +-1% |
| Setup Time | 500mS/230V 1000mS/115V @ full load |
| Rise Time | 30 mS @ full load |
| Hold Up Time | > 20ms @ 115Vac, > 115 ms @ 230Vac @ full load |
| Input | |
| Voltage Range | 90~264 VAC |
| Frequency Range | 47~63 Hz |
| Efficiency | > 90.0% @ 115VAC, > 91.0% @ 230VAC |
| AC Current (Max.) | <7.5A (10s) |
| Inrush Current | < 35A @ 115Vac & 230VAC |
| Leakage Current | <1mA/240VAC |
| Protection | |
| Short circuit | Hiccup Mode , Recovers automatically after fault condition is removed |
| Environement | |
| Working Temp. | -30°C ~ +70°C |
| Working Humidity | 20~95 % RH |
| Storage Temp. | -40°C ~ 85°C |
| Storage Humidity | 10~95 % RH Non-condensing |
| Safety & EMC | |
| Safety Standards | EN60950-1 approved |
| Withstand Voltage | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0,5KVAC |
| EMC Emission | Compliance to EN55022 5CISPR22) CLASS B, EN61000-3-2,-3 |
| EMC Immunity | Compliance to EN61000-4-2,3,4,5,6,8,11 EN61000-6-1 criteria A |
| Others | |
| Dimensions (LxHxl) | 135x121x40 mm |
| Weight | 530g |
Specifications
| Brand | Soprolec |
| Power | 120 W |
| Current | 5 A |
| Voltage | 24 V |
