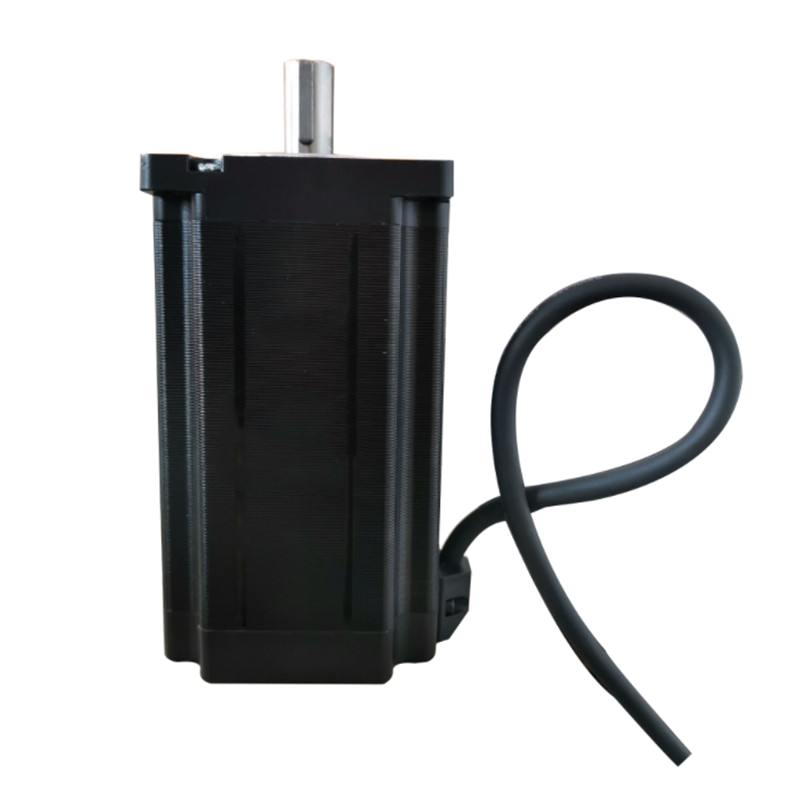

86HS120S Nema 34 - 12 Nm stepper motor
4.2A per phase
4 wires - 200 steps per turn (1.8° per step)
16mm keyed shaft - Weight 5.4Kg
Product Documents
Internal Reference:
M86HS120S
12Nm bipolar stepper motor
The 86HS120S stepper motor is part of a family of motors designed for high performance applications. Product quality is ensured by ISO9001-2000 certified quality control.
Compatible driver: 2CM880 and DMD8070
| Angular resolution | 1.8° |
| Step positioning accuracy | +5%( full step, no load) |
| Max temperature | 80°C Max |
| Operating temperature | -20°C -- +50°C |
| Insulation resistance | 100MΩmin.500VDC |
| Dielectric rigidity | 500VAC for 1 minute |
| Radial shaft backlash | 0.06 Max.( under a 450grs load) |
| Axial shaft backlash | 0.08 max.( under a 450grs load) |
|
Number of wires |
4 |
|
Model |
Wiring |
Holding torque Nm |
Phase current (A) |
Phase resistance (Ohm) |
Phase inductance (mH) |
Weight Kg |
|
86HS120S |
Bipolaire |
12.0 |
6.0 |
0.70±10% |
7.9±20% |
5.4 |
Accessories
Your Dynamic Snippet will be displayed here... This message is displayed because you did not provided both a filter and a template to use.
Specifications
| NEMA | 34 |
| Torque | 12 Nm |
| Number of phases | 2 |
| Current | 6 A |
| Shaft diameter | 14 mm |
| Shaft length | 32 mm |
| Phase resistance (Ohms) | 0.7 Ohm |
| Phase inductance (mH) | 7.9 mH |
| Step angle | 1.8° |
| Body length | 152 mm |
| Brake | Without brake |
| Weight | 5.4 kg |
Your Dynamic Snippet will be displayed here... This message is displayed because you did not provided both a filter and a template to use.
