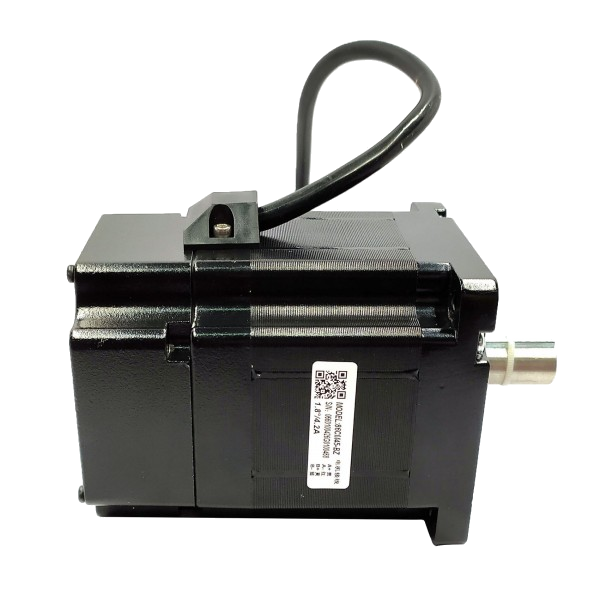

86CM85-BZ Nema 23 - 8.5 Nm stepper motor - with brake

Nema 34 stepper motor - 8.5 Nm with brake
2 phases, 4 wires - 6A - body length 161mm
14mm shaft (with 5mm key)

199.20 € Without Taxes 199.20000000000002 EUR 199.20 €

199.20 €

239.04 € 239.04 € with taxes

  • NEMA
  • Torque
  • Number of phases
  • Current
  • Shaft diameter
  • Phase resistance (Ohms)
  • Phase inductance (mH)
  • Step angle
  • Rotor inertia
  • Body length
  • Brake
  • Weight

This combination does not exist.

En rupture de stock

Product Documents

Datasheet 86CM85-BZ

Internal Reference: M86CM85-BZ


Bipolar stepper motor NEMA 34 - 8.5Nm with brake

The 86CM85-BZ is a 2-phase stepper motor offering 8.5 Nm holding torque, fitted with a static friction brake.

The integrated 24VDC brake can be controlled by a driver, a PLC or an axis card and thus be automatically activated when the motor is no longer powered.

It can be used in many industrial applications with excellent performance such as high precision, low heating and low vibration.

86CM85-BZ
Size NEMA 34
Phases 2
Step angle 1.8°
Precision ±0.9°
Body length 161mm
Number of wires 4
Holding torque 8.5 Nm
Current 6 A/Phase
Voltage 3,2 V
Resistance 0.53 Ω
Inductance 4,25 mH
Rotor inertia 2.7 kg-cm2
Shaft diameter 14 mm
Shaft type single
Weight 4.1kg
Insulation rating B
Insulation resistance Min 100 MΩ,500 VDC)
Operating temperature -10 - 50°C (14 - 122°F)
Temperature rise (Max): 80K
Radial backlash Max 0.02 mm (with a 450grs load)
Axial backlash Max 0.08 mm  (with a 900grs load)




Brake Features
Static Friction Torque 10 Nm
Voltage 24 V DC
Power 4W




Accessories

Your Dynamic Snippet will be displayed here... This message is displayed because you did not provided both a filter and a template to use.

Specifications

NEMA 34
Torque 8.5 mm
Number of phases 2
Current 6 A
Shaft diameter 14 mm
Phase resistance (Ohms) 0.53 Ohm
Phase inductance (mH) 4.25 mH
Step angle 1.8°
Rotor inertia 2.7 kg/cm2
Body length 161 mm
Brake With
Weight 4.1 kg
