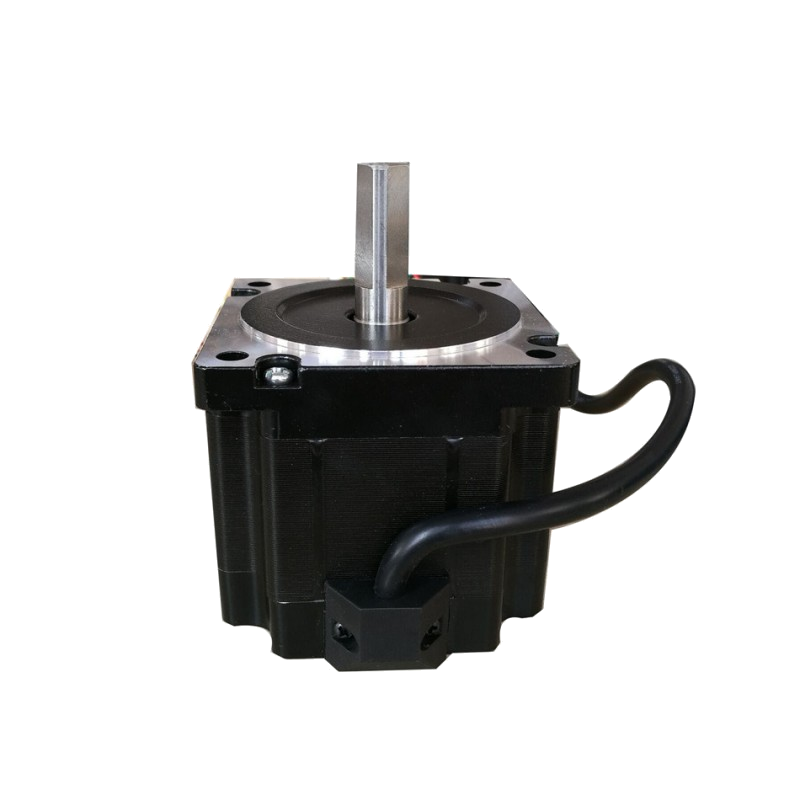

86CM35 Nema 34 - 3.5 Nm stepper motor

NEMA 34 stepper motor - 3.5 Nm
2 phases, 4 wires - Length 65mm
12.7mm shaft (with 5mm key)

74.76 € Without Taxes 74.76 EUR 74.76 €

74.76 €

89.71 € 89.71 € with taxes

  • Brand
  • Brand
  • NEMA
  • Torque
  • Number of phases
  • Current
  • Shaft diameter
  • Phase resistance (Ohms)
  • Phase inductance (mH)
  • Step angle
  • Rotor inertia
  • Body length
  • Brake
  • Weight

This combination does not exist.

En rupture de stock

Product Documents

Datasheet 86CM35
You have to login to access this document.

Internal Reference: M86CM35

3.5Nm bipolar stepper motor

The 86CM35 stepper motor is part of a range of motors designed for high performance applications. Product quality is ensured by ISO9001-2000 certified quality control.

Angular resolution 1.8°
Step positioning accuracy +0.9%(full step, no load)
Max. temperature 80°C Max
Operating ambient temperature -10°C -- +50°C
Insulation resistance 100MΩmin.500VDC
Dielectric strength 500VAC for 1 minute
Radial backlash 0.02 Max.(under a 450grs load)
Axial backlash 0.08 max.( under a 900grs load )
Number of wires
4

Model

Wiring

Holding torque
Nm

Phase current  (A)

Phase resistance (Ohm)

Phase inductance (mH)

Rotor inertia g.cm² (Oz-in-sec²)

Weight Kg

86CM35

Unipolar

3.5

4.0

0.42±10%



2.67±20%

1000
(0.0142)

1.8

Accessories

Your Dynamic Snippet will be displayed here... This message is displayed because you did not provided both a filter and a template to use.

Specifications

Brand Leadshine, Soprolec
NEMA 34
Torque 3.5 Nm
Number of phases 2
Current 4 A
Shaft diameter 12.7 mm
Phase resistance (Ohms) 0.42 Ohms
Phase inductance (mH) 2.67 mH
Step angle 1.8°
Rotor inertia 1.0 kg.cm2
Body length 65 mm
Brake Without
Weight 1.8 kg
