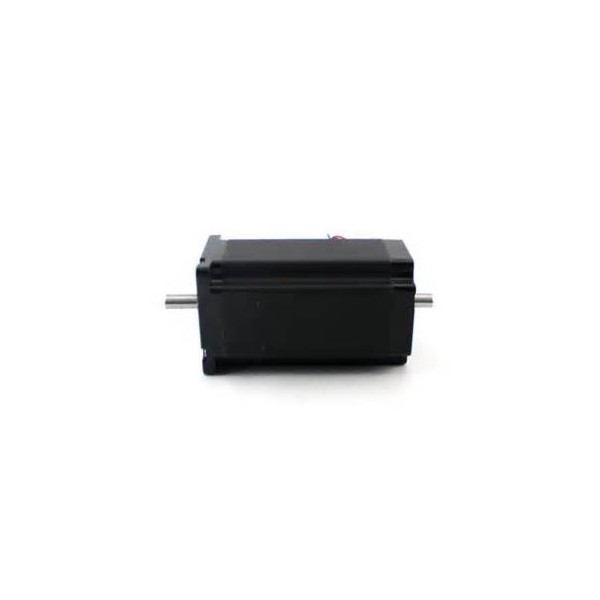

M57HS20D Nema 23 - 2.0 Nm stepper motor - dual shaft 8mm

2.0Nm 4 phases unipolar stepper motor
8 mm shaft diameter
6 wires
Phase current : 4A

56.09 € Without Taxes 56.09 EUR 56.09 €

56.09 €

67.31 € 67.31 € with taxes

  • NEMA
  • Torque
  • Number of phases
  • Current
  • Shaft diameter
  • Phase resistance (Ohms)
  • Phase inductance (mH)
  • Shaft
  • Body length
  • Number of wires
  • Brake
  • Weight

This combination does not exist.

En rupture de stock

Product Documents

Datasheet 57HS20D

Internal Reference: M57HS20D



Accessories

2.0Nm Dual Shaft Bipolar Stepper Motor
The 57HS20D stepper motor is part of a range of motors designed for high performance applications. Product quality is ensured by ISO9001-2000 certified quality control.


Angular resolution 1.8°
Step positioning accuracy +5%(full step, no load)
Max. temperature 80°CMax
Operating ambient temperature -10°C -- +50°C
Insulation resistance 100MΩmin.500VDC
Dielectric rigidity 500VAC for 1 minute
Radial shaft play 0.06 Max.(under a 450grs load)
Axial shaft backlash 0.08 max.(under a 450grs load)
Number of wires
6 fils



Model

Wiring

Holding torque
Nm(Oz-in)

Phase current (A)

Phase resistance (Ohm)

Phase Inductance (mH)

Rotor inertia g.cm² (Oz-in-sec²)

Weight Kg

57HS20D

Unipolar

2.0


4

0.7±10%

1.0±20%
520
1.35


Your Dynamic Snippet will be displayed here... This message is displayed because you did not provided both a filter and a template to use.


Specifications

NEMA 23
Torque 2 Nm
Number of phases 4
Current 4 A
Shaft diameter 8 mm
Phase resistance (Ohms) 0.7 Ohm
Phase inductance (mH) 1.0 mH
Shaft Double
Body length 84 mm
Number of wires 6
Brake Without
Weight 1.35 kg
