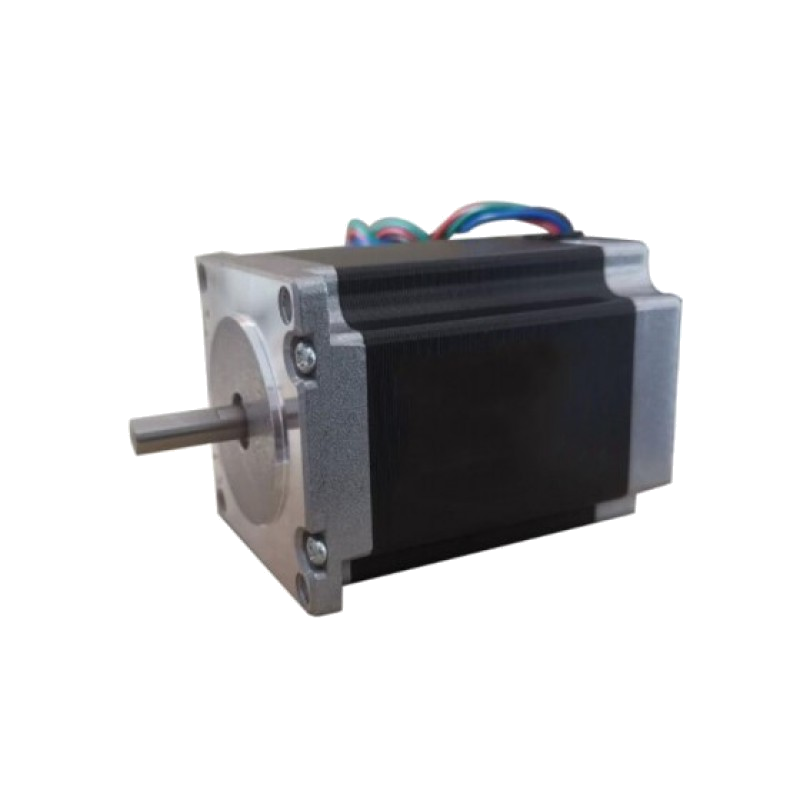

NEMA 23 Bipolar Stepper Motor - 1.3Nm
The 57CM13-4A is a 2-phase stepper motor offering a holding torque of 1.3 Nm. It can be used in many industrial applications by offering excellent performance such as high precision, low heating and low vibration.
| 57CM13-4A | |
|---|---|
| Size | NEMA 23 |
| Phases | 2 |
| Step angle | 1.8° |
| Precision | ±0.9° |
| Body length | 55mm (2.17 inch) |
| Number of wires | 4 |
| Holding torque | 1.3 N.m (185 oz-in) |
| Current | 4 A/Phase |
| Voltage | 1.68 V |
| Resistance | 0.42 Ω |
| Inductance | 1.6 mH |
| Rotor inertia | 0.3 kg-cm2 (0.00425 oz-in-sec2 ) |
| Shaft diameter | 6.35 mm (0.25 inch) |
| Shaft type | single |
| Weight: | 0.7 kg (1.54 lb) |
| Insulation class | B |
| Insulation resistance | Min 100 MΩ,500 VDC) |
| Operating temperature | -10 - 50°C (14 - 122°F) |
| Temperature Rise (Max): | 80K |
| Radial play | Max 0.02 mm (with a 450grs load) |
| Axial play | Max 0.08 mm (with a 450grs load) |
Accessoires
Your Dynamic Snippet will be displayed here... This message is displayed because you did not provided both a filter and a template to use.
Specifications
| Brand | Leadshine, Soprolec |
| NEMA | 23 |
| Torque | 1.3 Nm |
| Number of phases | 2 |
| Current | 4 A |
| Shaft diameter | 6.35 mm |
| Phase resistance (Ohms) | 0.42 Ohms |
| Phase inductance (mH) | 1.6 mH |
| Step angle | 1.8° |
| Rotor inertia | 0.3 kg.cm2 |
| Body length | 55 mm |
| Brake | Without brake |
| Weight | 0.7 kg |
