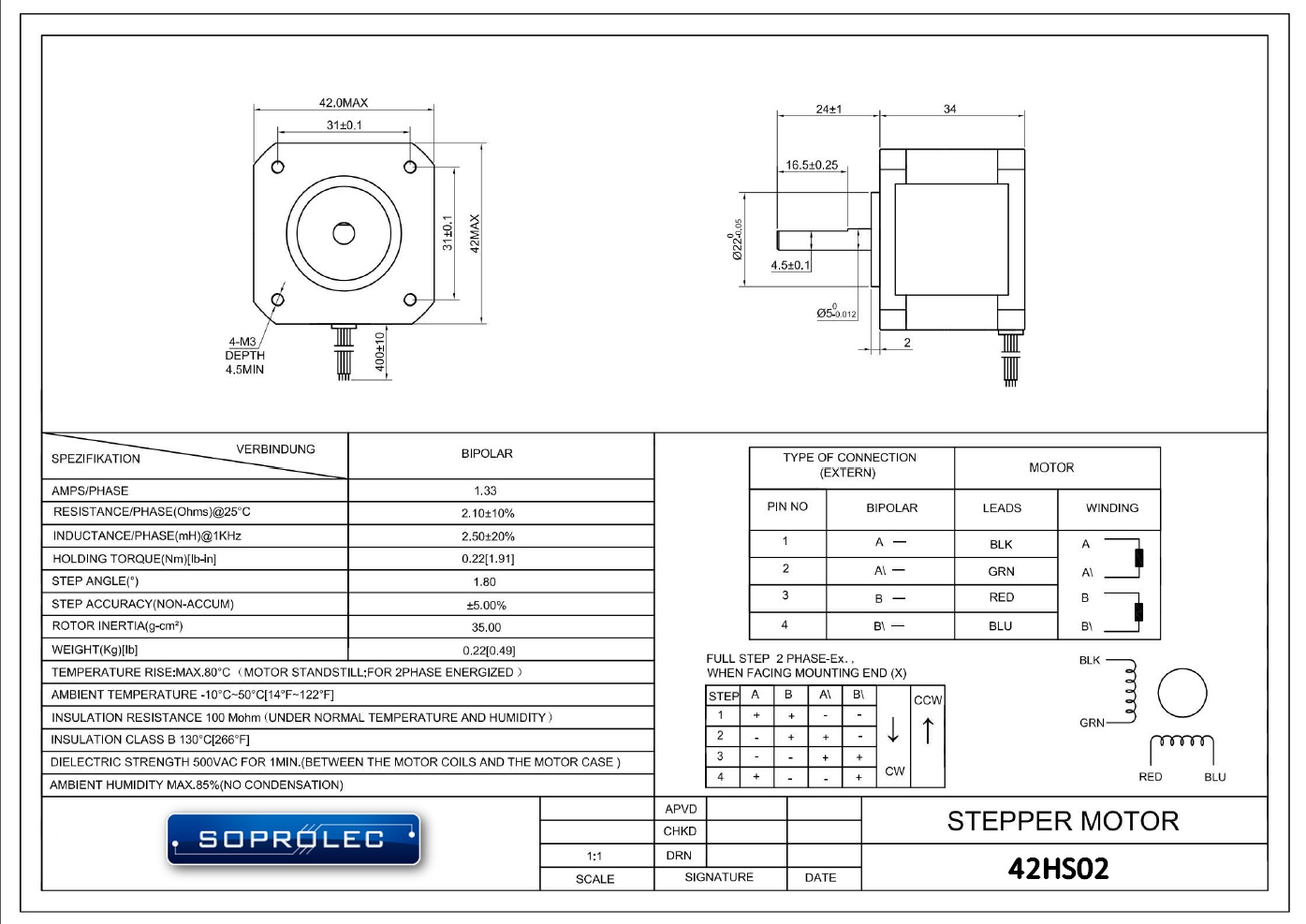

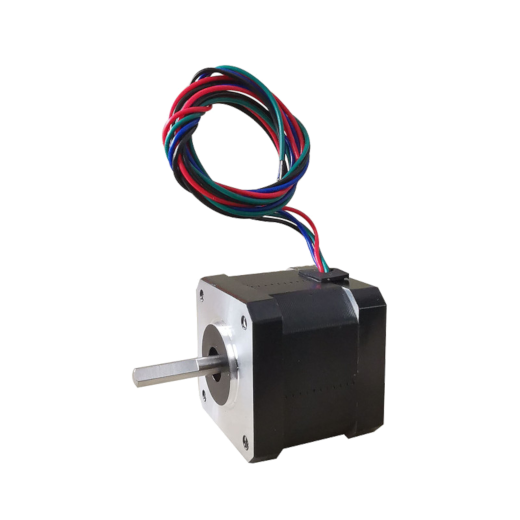

0.22Nm bipolar stepper motor
The 42HS02 stepper motor is part of a line of motors designed for high performance applications. Product quality is ensured by ISO9001-2000 certified quality control.
| Angular resolution | 1.8° |
| Step positioning accuracy | +5%(full step, no load) |
| Max. temperature | 80°C max |
| Operating ambient temperature | -10°C -- +50°C |
| Insulation resistance | 100MΩmin.500VDC |
| Dielectric rigidity | 500VAC for 1 minute |
|
Number of wires |
4 |
|
Model |
Wiring |
Holding torque Nm |
Phase current (A) |
Phase resistance (Ohm) |
Phase inductance (mH) |
Rotor inertia g.cm² |
Weight Kg |
|
42HS02 |
Bipolar |
0.22 |
1.33 |
2.1 |
2.5 |
35 |
0.22 |
Accessories
Your Dynamic Snippet will be displayed here... This message is displayed because you did not provided both a filter and a template to use.
Specifications
| NEMA | 17 |
| Torque | 0.22 Nm |
| Number of phases | 2 |
| Current | 1.33 A |
| Shaft diameter | 5 mm |
| Shaft length | 22 mm |
| Phase resistance (Ohms) | 2.1 |
| Phase inductance (mH) | 2.5 |
| Step angle | 1.8° |
| Body length | 33.5 mm |
| Brake | Without brake |
| Weight | 0.22 kg |
