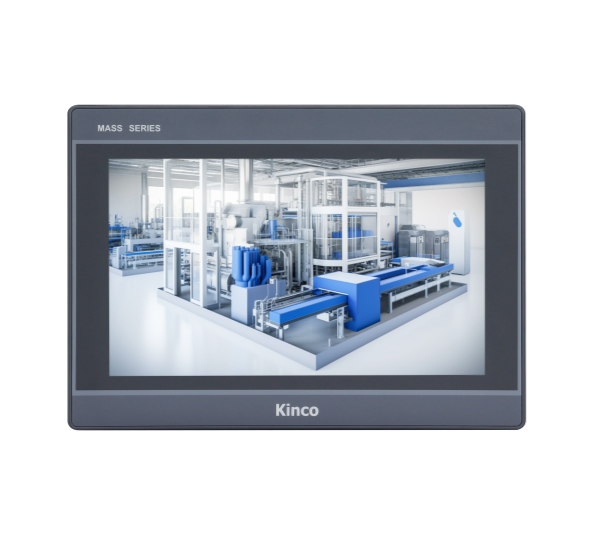

10.1" Kinco HMI - Ethernet - M2 series
16.77M color HMI screen
10.1" TFT - 1024*600 pixel - Touchscreen ARM RISC 32Bit 800MHz
Contrast: 500:1, Brightness: 300 cd/m2
256MB NAND Flash Memory+128MB DDR3 Memory
DB9 COM0:RS232/RS485/RS422; COM1:RS485; COM2:RS232
Ethernet. USB Host, USB for programming
DC10.8V～DC28V -6W. ABS - Black
Dimensions(mm): 280 *193 *36mm
Cutout (mm): 260mm*179mm
IP65 certification
Internal Reference:
M2100E
The new Green Series range differs from the previous ones mainly by:
- reduced consumption
- an increased color palette
- a new Kinco DTOOLS development tool (free)
- une connectivité Ethernet/Internet complète ( DHCP, NTP, FTP, VNC client et serveur , Mysql....)
The device supports communication with over 60 different PLC models, including Siemens S7-200, S7-1200/1500, S7-300/400, LOGO!, Modbus RTU/TCP (master and slave), Allen Bradley, Thinget , Mitsubishi FX, Beckhoff ADS, BACnet and many others.
Technical sheet :
- Display 10.1" TFT 16:9
- Resolution 1024x600 pixels
- Brightness: 300 cd/m2
- 32-bit RISC CPU 800MHz
- 256MB NAND Flash Memory+128MB DDR3 Memory
- Memory expansion: 1 USB Host
- Ports COM COM0: RS232/RS485-2/RS485-4, COM1:RS485 COM2:RS232
- Ethernet 10/100 Base-T
- Printer port USB/Serial
- Program download: 1 USB port Slave/Serial/Ethernet
- Expansion port: No
- Digitizer: 4-wire precision resistance network
- Touch function keys
- Audio output: No
- Backlight: LED
- Case color: Black
- Protection sign: IP65 (front bezel)
- Rated power: 4.2W
- TRated voltage: DC 24V
- Voltage range: 10.8~28VDC
- Max. power interruption: below 3 ms
- Fanless cooling
- Insulation resistance: above 50 mégohms at 500V DC
- Dielectric rigidity: 500VAC 1 minute
- Operating temperature: 0~50℃
- Storage temperature: -10~60℃
- Operating humidity: 10~90% (without condensing)
- Storage humidity: 10~90% (without condensing)
- Shock resistance: 10~25Hz (X,Y,Z direction, 2G, 30 minutes)
- Case material: ABS
- 1 USB Host port
- 16.7 millions colors
- Cutout(mm) 260x179
- Dimensions (mm) 280x193x36
Integrated drivers for communication with all following PLCs :
ABB AC500 (serial + Ethernet), Allen Bradley (serial + Ethernet), BACnet (serial + Ethernet), Beckhoff Twincat ADS (Ethernet), Codesys V2 (Ethernet), Codesys V3 (Ethernet), Emerson RX3i (Ethernet), GE SNP (serial), IDEC MicroSmart (Ethernet only), IDEC MicroSmart (serial + Ethernet), Kinco PLC (serial + Ethernet), Mitsubishi FX (serial + Ethernet), Mitsubishi Q (serial + Ethernet), Modbus master and slave (serial + Ethernet), Omron (serial + Ethernet), Schneider (serial + Ethernet), Siemens LOGO! (Ethernet), Siemens S7-200 (serial + Ethernet), Siemens S7-300/400 (serial + Ethernet), Siemens S7-1200/1500 (Ethernet), Unitronics (serial + Ethernet), Xinje XC (serial), Xinje XD (serial + Ethernet), Xinje XD/XL (serial + Ethernet)
Accessories
Specifications
| Brand | Kinco |
| Voltage | 24 V |
| Screen size | 10 pouses |
| Interface | Modbus RS485, USB, Ethernet |
| Display resolution | 1024x600 pixels |
