External Linear Stepper Motor - Nema 17, 8mm pitch, 150 mm length
Linear axis External motor
Motor: Nema 17 - 0.26Nm - 12V / 0.4A - 4 wires
Screw: diameter 8mm - pitch 8mm - length 150 mm
Internal Reference:
M17HSL0026-0808E-150
M17HSL0026-0808E-150 is a linear axis composed of a Nema 17 motor on the side, and a 150mm long screw with a diameter of 8mm and a 8mm pitch.
The screw is fixed to the motor, a POM (PolyOxyMethylene) fixing nut moves along the screw.

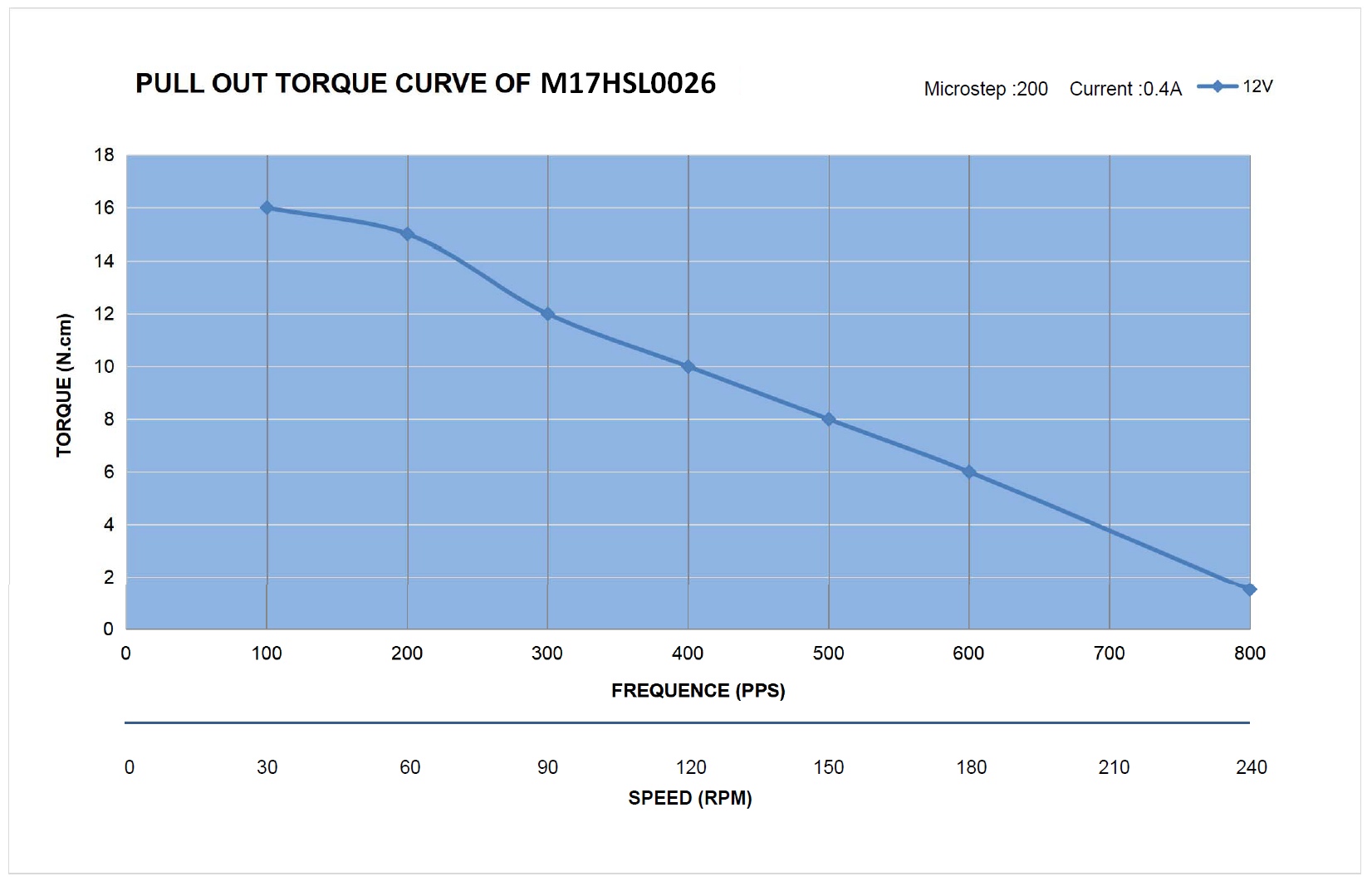

Electrical Specifications
| Manufacturer Part Number | M17HSL0026-0808E-150 |
| Motor type | External Linear Stepper |
| Step Angle | 1.8° |
| Holding Torque | 26Ncm(36.8oz.in) |
| Rated Current/phase | 0.4A |
| Phase Resistance | 30ohms |
| Recommended Voltage | 12V |
| Inductance | 37mH±20%(1KHz) |
Physical Specifications
| Frame size | 42 x 42mm |
| Body Length | 34mm |
| Lead Screw Length | 150mm |
| Lead Screw Diameter | Φ8mm |
| Lead/Revolution | 8mm |
| Number of Leads | 4 |
| Lead Length | 400mm |
| Weigth | 220g |
Connection
| Wire Color | RED | BRN | YEL | GRN |
| Board Connector | A | C | B | D |
Accessories
Your Dynamic Snippet will be displayed here... This message is displayed because you did not provided both a filter and a template to use.
Specifications
| Brand | Soprolec |
| NEMA | 17 |
| Torque | 0.26 Nm |
| Number of phases | 2 |
| Current | 0.4 A |
| Phase resistance (Ohms) | 30 Ohms |
| Phase inductance (mH) | 37 mH |
| Step angle | 1.8° |
| Body length | 34 mm |
| Screw length | 150 mm |
| Screw diameter | 8 mm |
| Screw step | 8 mm |
| Screw type | Captive |
| Weight | 220 gr |
