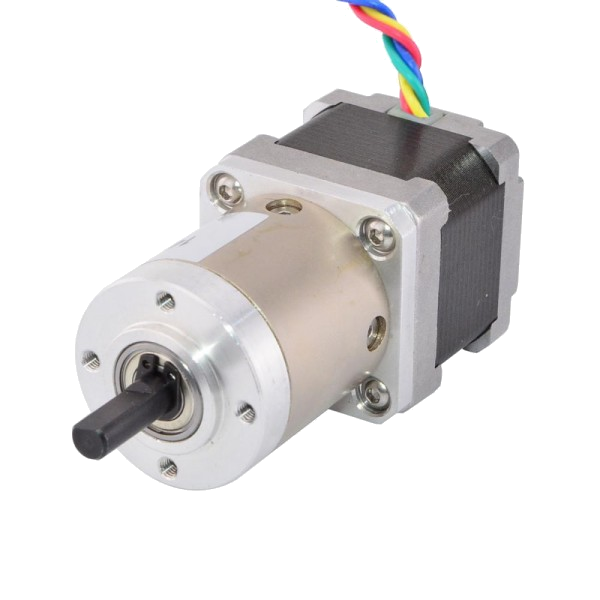

M14HS0018-R51:1  5.2 Nm bipolar stepper motor - with 50.9:1 gearbox

stepper motor with gearbox
Motor :
1.8° / 0.14Nm
1A /3.2 ohm / 4.5mH
5mm shaft
Body length 34mm
Planetary gearbox:
50.9:1 ratio
Backlash <1°
Torque 4Nm (6Nm peak)
Reducer length 43.6mm
Shaft D6mm, Length 18mm

65.70 € Without Taxes 65.7 EUR 65.70 €

65.70 €

78.84 € 78.84 € with taxes

  • NEMA
  • Torque
  • Number of phases
  • Current
  • Shaft diameter
  • Phase resistance (Ohms)
  • Phase inductance (mH)
  • Reduction ratio
  • Step angle
  • Body length
  • Brake
  • Weight

This combination does not exist.

Product Documents

M14HS0018-R51:1 fichier.step
Courbe de couple
Datasheet M14HS0018-R51:1

Internal Reference: M14HS0018-R51:1


5.2 Nm Bipolar Stepper Motor with Gearbox

 This high-precision stepper motor is equipped with a 50.9:1 ratio Planetary gearbox, the resolution reaches 0.35° per step. It is the ideal solution for applications that require low rotation speeds and/or high torque.



Electrical Specifications

Reference M14HS0015-R51
Motor type bipolar stepper
Angular resolution 0.35°
Holding torque 0.14 Nm
Phase current 1 A
Phase resistance  3.2 ohms
Voltage range 12-24V
Inductance 4.5 mH±20%(1KHz)

Reducer Specifications

Reducer type Planetary
Reduction ratio 50.9:1
Efficiency 73%
Backlash <=1°
Max. admissible torque 4 Nm (283oz-in)
Allowable torque moment 6 Nm (849oz-in)
Max. axial load 50N
Max. radial load 100N

Mechanical specifications

Flange 35 x 35 mm
Motor length 34 mm
Reducer length 43.6 mm
Shaft diameter Φ6 mm
Shaft length 18 mm
D-cut Length 12 mm
Number of wires 4
Wire length 300 mm
Weigth 390g

Accessories

Your Dynamic Snippet will be displayed here... This message is displayed because you did not provided both a filter and a template to use.

Specifications

NEMA 14
Torque 0.14 Nm
Number of phases 2
Current 1 A
Shaft diameter 6 mm
Phase resistance (Ohms) 3.2 Ohms
Phase inductance (mH) 4.5 mH
Reduction ratio 50.9:1
Step angle 0.35°
Body length 77.6 mm
Brake Without brake
Weight 400 g
