Hybrid servomotor 2.3 Nm - Nema 23 with integrated Modbus driver
2 phases - 14bit single-turn incremental encoder - 4000 points/turn
Shaft 8mm
Body length 99mm
Power supply 24 to 50 VDC

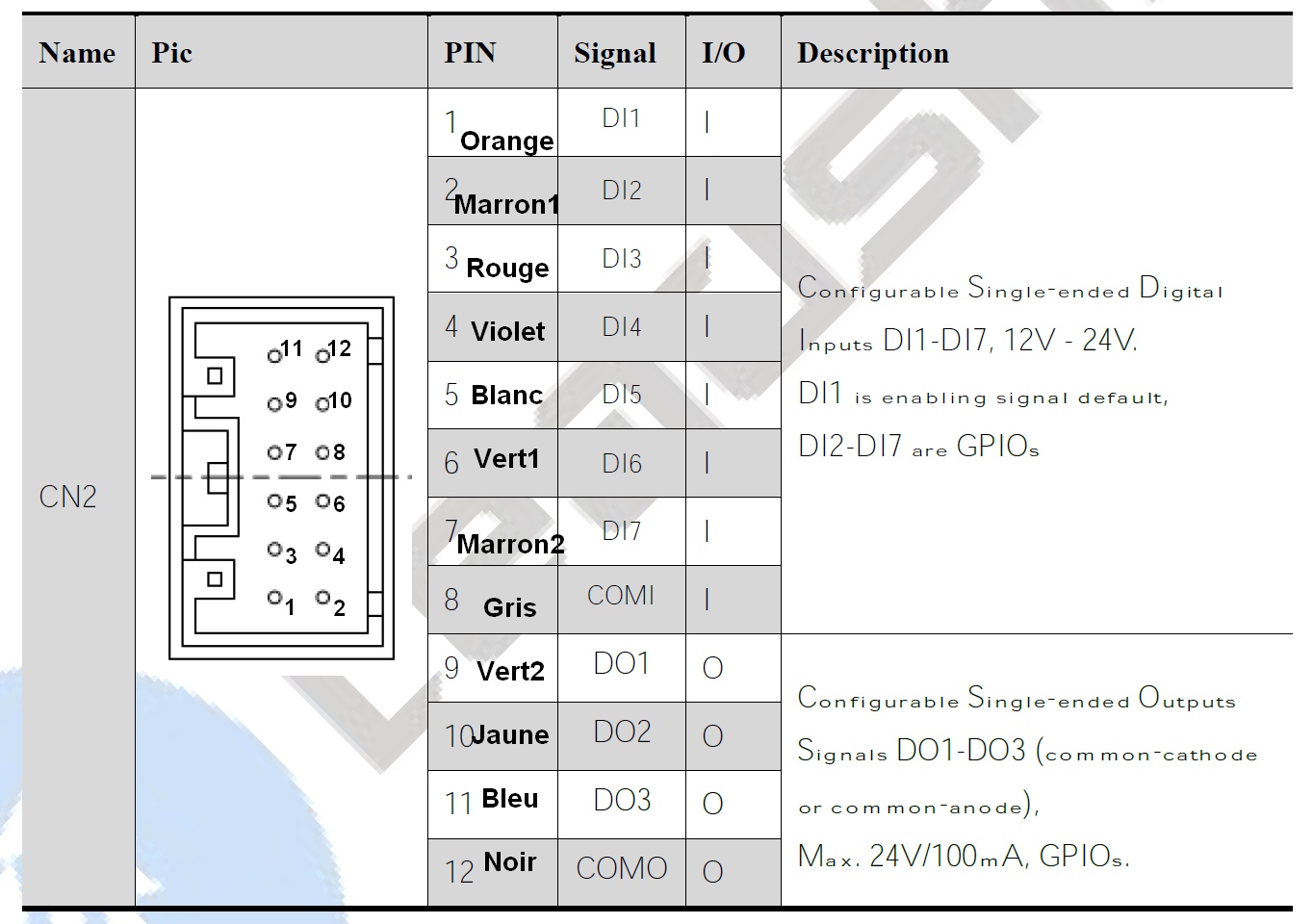

Integrated Modbus driver, 7 inputs 3 outputs, and pulses/direction signals
Standalone functions, 16 paths
Internal Reference:
iCS-RS2323
Specifications
| Brand | Leadshine |
| NEMA | 23 |
| Torque | 2.3 Nm |
| Number of phases | 2 |
| Shaft diameter | 8 mm |
| Step angle | 1.8° |
| Body length | 99 mm |
| Brake | Without brake |
| Min. Voltage | 24 V |
| Max. Voltage | 50 V |
| Interface | Modbus RS485 |
| Encoder resolution | 1000 points (4000 pulses/rotation) |
