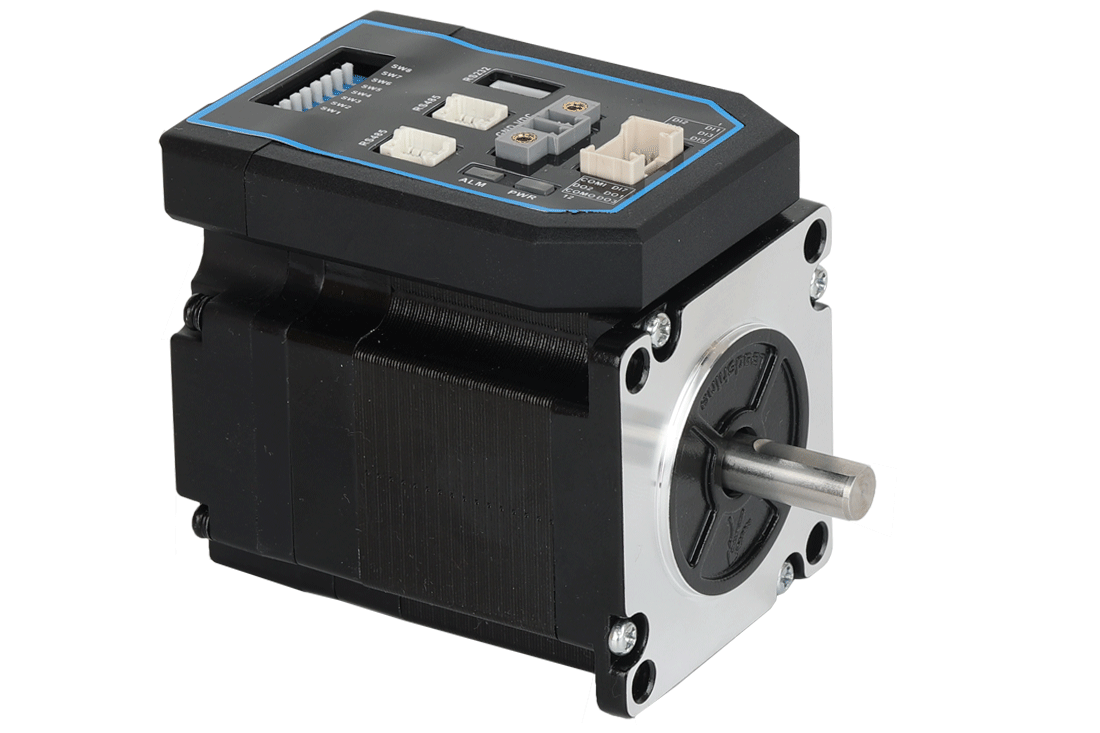

Hybrid servomotor 0.8 Nm - Nema 17 with integrated Modbus driver
2 phases - 14bit single-turn incremental encoder - 4000 points/turn
Shaft diameter 5mm
Body length 85mm
Power supply 24 VDC

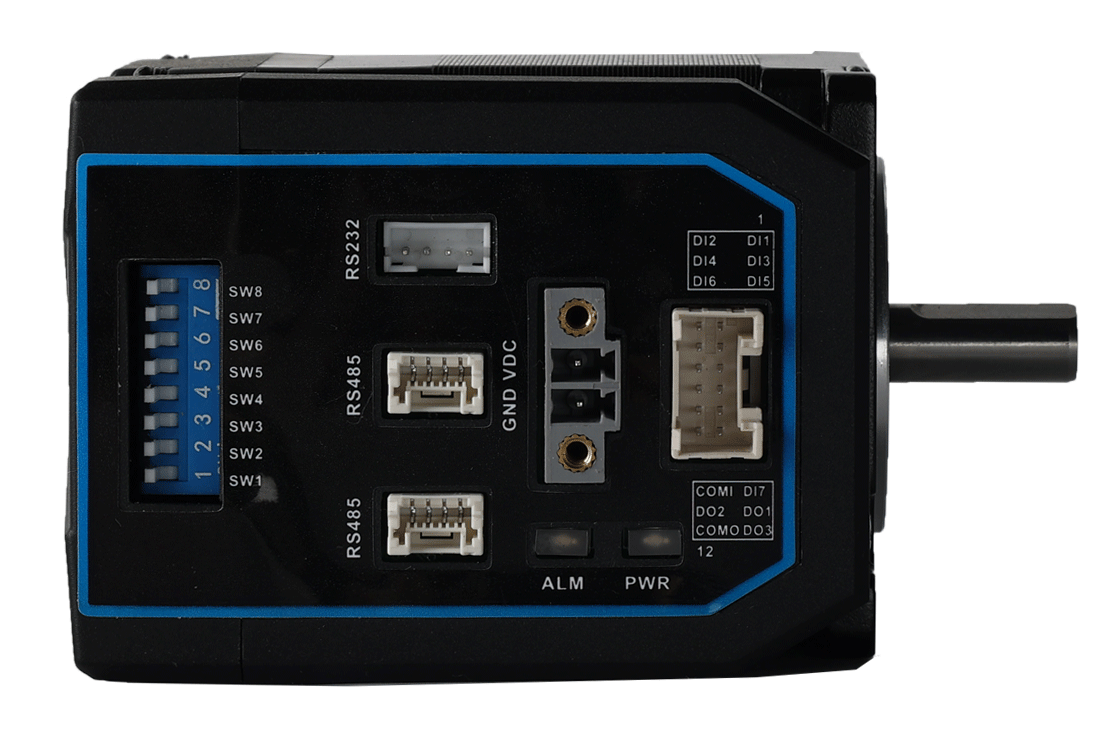

Integrated Modbus driver, 7 inputs 3 outputs
Standalone functions, 16 paths
Internal Reference:
iCS-RS1708
Specifications
| Brand | Leadshine |
| NEMA | 17 |
| Torque | 0.8 Nm |
| Number of phases | 2 |
| Inputs | 7 |
| Outputs | 3 |
| Shaft diameter | 5 mm |
| Step angle | 1.8° |
| Body length | 85 mm |
| Brake | Without |
| Min. Voltage | 24 V |
| Interface | Modbus RS485 |
| Encoder resolution | 1000 points (4000 pulses/rotation) |
