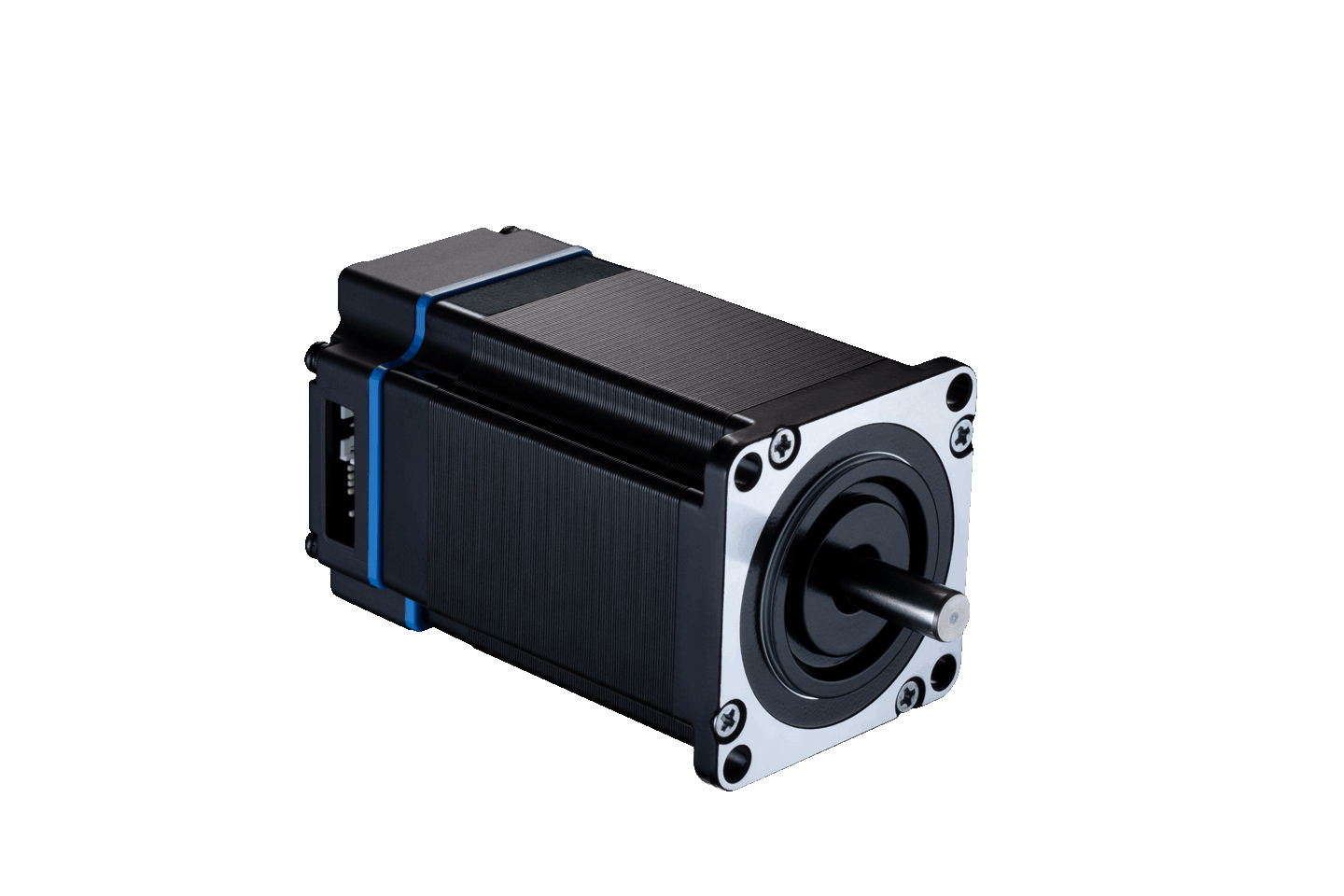

Closed loop stepper motor 2.3 Nm - Nema 23 with integrated driver
2 phases - 14bit single-turn incremental encoder - 4000 points/turn
Shaft 8mm
Body length 99mm
Power supply 24 to 36 VDC
Integrated Modbus driver, 3 inputs, 1 output
Command by pulses/direction signals, or CW/CCW
Internal Reference:
iCS-2323
● NEMA23, 2.3N.m ● Enhance performance, especially at low-speed application (<60RPM) ● Soft-start with no “jump” when powered on ● Pulse & direction (PUL&DIR) or CW&CCW (double pulse) control ● 3 digital inputs, 1 optically isolated digital output ● 14-bit single-turn increment encoder ● RS232 communication for Leadshine software connection
Specifications
| Brand | Leadshine |
| NEMA | 23 |
| Torque | 2.3 Nm |
| Number of phases | 2 |
| Shaft diameter | 8 mm |
| Step angle | 1.8° |
| Body length | 96 mm |
| Brake | Without brake |
| Min. Voltage | 24 V |
| Max. Voltage | 36 V |
| Interface | Pulses/direction |
| Encoder resolution | 1000 points (4000 pulses/rotation) |
