| Specifications |

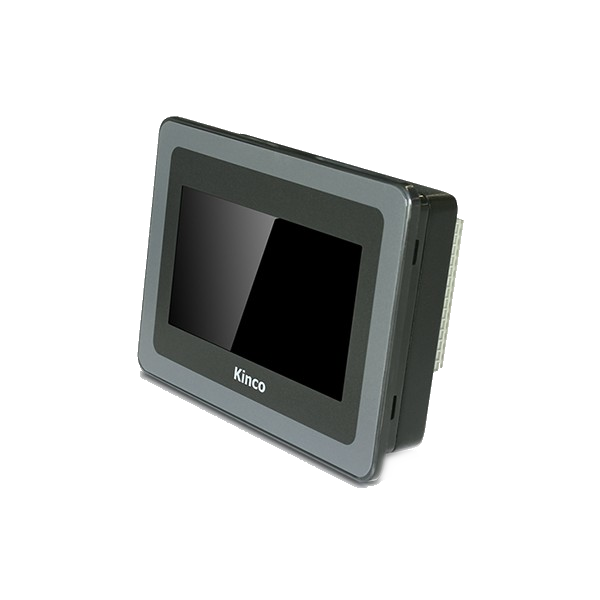

HP043-20DT
|
| Display | 4,3" TFT (16:9) |
| Resolution | 480x272 pixels |
| Colors | 65 536 |
| Backlight | LED |
| Brightness | 250 cd/m² |
| Lifespan | 50 000 heures |
| Digitizer | 4 wires precision Resistive network |
| Processor | 32 bits 520 MHz RISC CPU |
| Memory | 128 MB Flash + 32 MB DDR2 |
|
Storage
expansion | 1 USB host |
| Receipes and RTC storage memory | 256 KB |

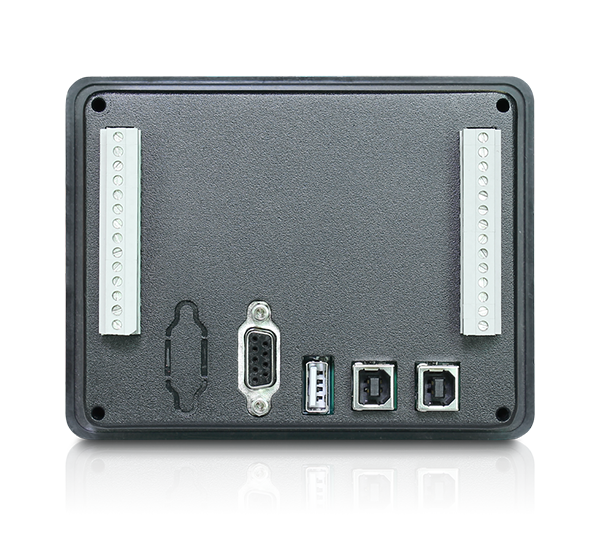

| Program download | 1 USB port |
| Serial port/COM | 1 * RS485, USB2.0, bitrate up to 115,2 kbps Modbus RTU master/slave |
| Inputs and Outputs | 9*DI / 9*DO |
| Analog Inputs | 2 |
| Expansion modules | None |
|
Electrical specs: | |
| Nom. power | 2.4W |
| Nom. voltage | 24VDC |
| Voltage range | 12 to 28VDC |
| |
| Insulation resistance | > 50M Ω à 500 VDC |
| Dielectric strength test | 500 VCA 1 minute |
| Mechanical specs: | |
| Body color | Black and grey |
| Shell material | ABS |
| Dimensions (mm) | 132*102-40.1 |
| Cutout size (mm) | 119*93 |
| Weight (Kg) | 0.155Kg |
| Ambient specs | |
| Operating Temperature | 0° to 50° C |
| Operating Humidity | 10 à 90% without condensation |
| Storage Temperature | -10° to 60°C |
| Storage Humidity |
10 to 90% without condensation
|
| Cooling | Natural ambient air |
| Certificate | |
| Protection sign | IP65 (front panel) |
Accessories
Your Dynamic Snippet will be displayed here... This message is displayed because you did not provided both a filter and a template to use.
Specifications
| Brand | Kinco |
| Voltage | 24 V |
| Inputs | 9 |
| Outputs | 9 |
| Analog inputs | 2 |
| Screen size | 4.3 pouces |
| Interface | USB, Modbus RS485 |
| Display resolution | 480x272 pixels |
