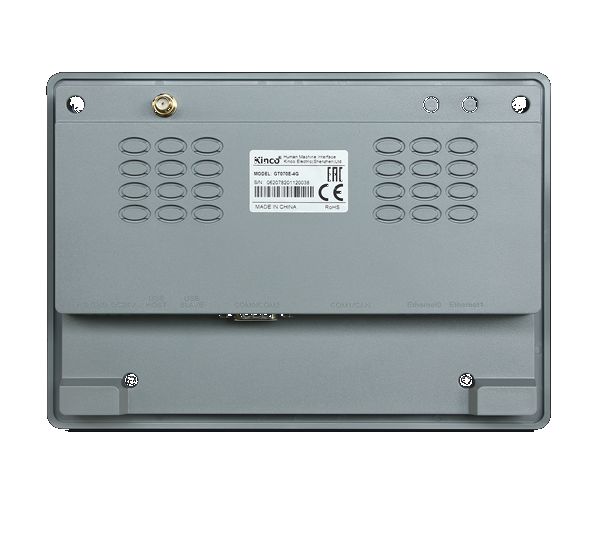

7" Kinco IoT HMI - Ethernet

The new Green Series range differs from the previous ones mainly by:

- reduced consumption

- an increased color palette

- a new Kinco DTOOLS development tool (free)

- une connectivité Ethernet/Internet complète ( DHCP, NTP, FTP, VNC client et serveur , Mysql....)

L'appareil prend en charge la communication avec plus de 60 modèles d'automates différents, notamment Siemens S7-200, S7-1200/1500, S7-300/400, Modbus RTU/TCP (maître et esclave), Allen Bradley, Thinget, Mitsubishi FX, Beckhoff ADS, BACnet et bien d'autres.

Technical sheet :

• 7.0" TFT 16:9 screen
• Résolution 1024x600 pixels
• Brightness: 450 cd/m2
• 32-bit RISC CPU 800MHz
• 256MB NAND Flash Memory+128MB DDR3 Memory
• Memory expansion: 1 USB Host
• COM port: COM0: rs232/rs485-2/rs485-4, COM2:rs232
• Ethernet 10/100 Base-T
• Printer port USB/Serial
• Program download: 1 USB port Slave/Serial/Ethernet
• Expansion port: No
• Digitizer: 4-wire precision resistance network
• Touch function keys
• Audio output: No
• Backlight: LED
• Case color: Black
• Protection sign: IP65 (front bezel)
• Rated power: 4.2W
• TRated voltage: DC 24V
• Voltage range: 10.8~28VDC
• Max. power interruption: below 3 ms
• Fanless cooling
• Insulation resistance: above 50 mégohms at 500V DC
• Dielectric rigidity: 500VAC 1 minute
• Operating temperature: 0~50℃
• Storage temperature: -10~60℃
• Operating humidity: 10~90% (without condensing)
• Storage humidity: 10~90% (without condensing)
• Shock resistance: 10~25Hz (X,Y,Z direction, 2G, 30 minutes)
• Case material: ABS
• 1 USB Host port
• 16.7 millions colors
• Cutout (mm) 192x138
• Dimensions (mm) 204x150x37

Wi-Fi version and 4G version also available on request. Please contact us.
