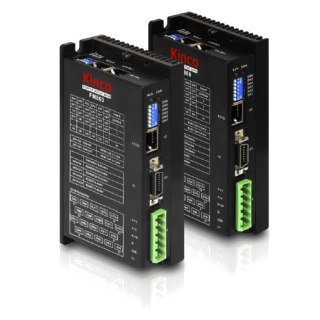

FM860-LA-000 - Modbus stepper driver
MODBUS RS485 communication interface
Power supply 24 to 70VDC
6 opto-isolated inputs
3 opto-isolated outputs
1 analog input ±10V
Homing function, Multi-speed, Multi-position
Internal Reference:
FM860-LA-000
The FM860-LA-000 driver is a stepper motor driver equipped with a MODBUS protocol communication interface.
Compatible with 2-phase bipolar stepper motors and also with 3-phase motors.
Control can be done by RS485 bus, MODBUS protocol, by a Step/Direction command and also by an analog input +/-10V You have several operating modes:
- The multi-position mode which allows using a combination of inputs, to select different positions,
- The multi-speed mode which allows using a combination applied to the inputs, to select a rotation speed,
- Homing mode, which allows you to perform an origin cycle based on the detection of a limit switch.
Specs:
- Power supply 24 to 70VDC
- Compatible with 2 or 3 phase stepper motors,
- Output current from 0.1A to 6A
- 6 optocoupled inputs (including 3 inputs accepting voltages from 5 to 24VDC)
- 3 optocoupled outputs (100mA max)
- 1 analog input +/-10V
- Different pulse control modes: Pules/Dir, CW/CCW or quadrature
- Full step resolution to 1/128 step
- Over voltage, low voltage, over temperature and over current protection.
- Wheight 0.36Kg
Accessories
Your Dynamic Snippet will be displayed here... This message is displayed because you did not provided both a filter and a template to use.
Specifications
| Brand | Kinco |
| Axes | 1 Axe |
| Inputs | 6 |
| Outputs | 3 |
| Analog inputs | 1 |
| Min. Voltage | 24 V |
| Max. Voltage | 70 V |
| Max. current | 6 A |
| Interface | Modbus RS485 |
