Specifications
- NEMA 42 size 3-phase motor
- 20Nm holding torque
- Speed range from 0 to 2,000 rpm
- Integrated incremental encoder of 1000 points (resolution 4000 points per revolution), signals A , A-, B , and B-
- Shaft diameter 19mm
- Fluid and silent movements, reduced heating
When this motor is associated with driver ES-DH2306, you have a closed-loop system that protects you from the risks of stalling and loss of step often encountered in stepper motors based solutions.

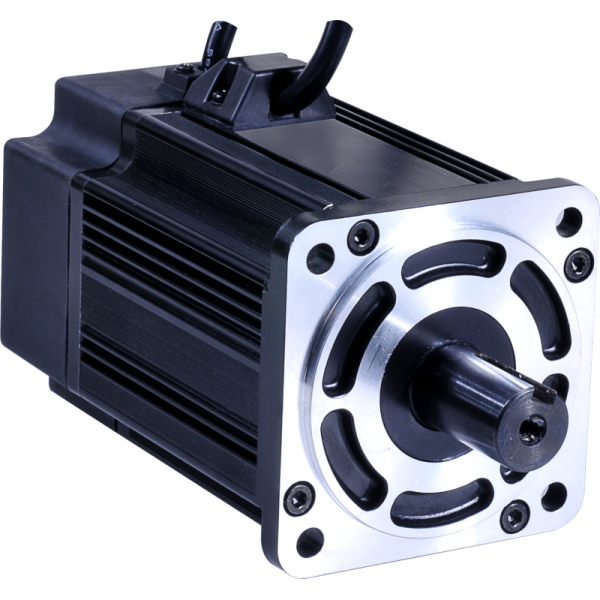

ES-MH342200 is 20 Nm (2800 oz - in) 3 phase NEMA 42 stepper motor with integrated 1,000-line incremental encoder. It is built with high quality material and can move smoothly with high precision, very low noise & heating.
The ES-DH2306
driver takes over the management of the regulation and therefore of the encoder.
When driven by a Leadshine 3 phase to take direct 110 / 120 / 220 / 230 AC input voltage, the position loop between the motor and drive is fully closed. Therefore, loss of steps which limits adoption of stepper systems is totally eliminated. Because there is no torque resolution needed like in open loop stepper systems, you can much better high-speed performance than open loop stepper systems by increasing up to 30%. Such systems are also ideal to replace brushless servo systems to offer huge starting and low speed torque.
Specifications
| Model | ES-MH342200 |
| Size | NEMA 42 |
| Phases | 3 |
| Step angle | 1.2° |
| Number of wires | 3 |
| Holding torque | 20.0Nm |
| Encoder resolution | 4,000 pulses/revolution |
| Shaft diameter | 19mm |
| Current | 5.2 A |
| Inductance | 18 mH |
| Resistance | 1.88 Ohm |
| Rotor inertia | 17 Kg.cm² |
| Body length | 245mm |
| Weight: | 12.8Kg |
Dimensions
Torque curve
1 Nm = 141.6 oz-in
Accessories
Specifications
| Brand | Leadshine, Soprolec |
| NEMA | 42 |
| Torque | 20 Nm |
| Number of phases | 3 |
| Shaft diameter | 19 mm |
| Current per phase | 5.2 A |
| Phase resistance (Ohms) | 1.88 Ohms |
| Phase inductance (mH) | 1.18 mH |
| Step angle | 1.2° |
| Rotor inertia | 17 kg/cm2 |
| Body length | 245 mm |
| Encoder resolution | 1000 points (4000 pulses/rotation) |
| Weight | 12.8 kg |
