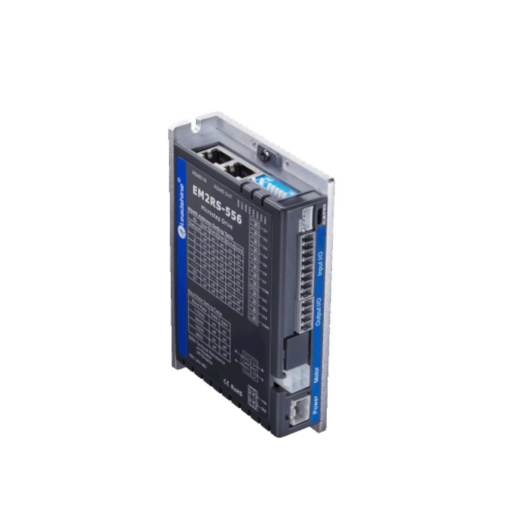

EM2RS-556 Modbus stepper driver

EM2RS-556 -Driver for stepper motors.
- Power supply from 20 to 50VDC. Output current from 0.5 to 5.6A.
- Modbus RS485 control
- Speed, Position, Homing modes
7 programmable digital inputs ( Limit, Origin, Quick stop, Alarm reset, Enable, JOG or Position Table inputs)
3 digital outputs (Alarm, Brake, Homing / Instruction / Path complete)

98.60 € Without Taxes 98.60000000000001 EUR 98.60 €

98.60 €

118.32 € 118.32 € with taxes

  • Brand
  • Inputs
    • 7
  • Outputs
    • 3
  • Min. Voltage
  • Max. Voltage
  • Max. current
  • Configurable
  • Interface

This combination does not exist.

Product Documents

Using Modbus with Leadshine Drivers
Manuel rapide Motion Studio
Manuel EM2RS
Datasheet EM2RS

Internal Reference: EM2RS-556

Specs

  • Support for Modbus RTU communication using an isolated RS485 bus
  • Supply voltage 20-50VDC, max output current 5.6A
  • HMI, PLC or external I/O control the movement
  • 7 programmable inputs: Limit, Home, Quick Stop, Alarm Reset, Enable, JOG or Position Table
  • 3 programmable outputs: alarm, brake, homing / instruction / route completed
  • Operating modes: velocity profile, position mode, homing
  • Protections against overvoltages, overcurrents, motor wiring errors, etc.
  • Modbus identifier and communication speed adjustable by switches
  • Current and resolution setting via Motion Studio parameterization software (RS232 interface)
  • Small dimensions (118x79.5x25.5mm)
  • Pluggable connectors


Introduction

The EM2RS series is a stepper driver generation based on the standard Modbus RTU protocol, using RS485 communication, which allows networking up to 31 axes.
Their built-in PR function with 16-segment position table (PR mode) can dispense with additional controllers in most point-to-point applications, greatly improving system reliability and reducing costs.


Applications

The EM2RS series also supports the teach function, position profile, velocity profile, and homing operation modes. The EM2RS-556 can power 2-phase stepper motors in NEMA 17, 23, and 24 formats.

Electrical specifications

(Tj=25℃)

Parameters

EM2RS-556

Min.

Min

Typical

Max

Output current

1.8

-

5.6 (4A RMS)

Amps

Voltage (DC)

20

24-48

50

VDC

Current for logic signals

7

10

16

mA

Input signal frequency

0

-

10

Khz

Input signal voltage

12

-

24

VDC

Mechanical Specifications (Unit: mm, 1 inch=25.4 mm)

Figure 1








Typical connection


Logiciel de paramétrage Leadshine Motion Studio V1.49 :
https://www.leadshine.com/upfiles/downloads/4f2e3904b60df00acb75d9cd2ae65491_1702632536136.zip


Accessories

Your Dynamic Snippet will be displayed here... This message is displayed because you did not provided both a filter and a template to use.

Specifications

Brand Leadshine
Inputs 7
Outputs 3
Min. Voltage 20 V
Max. Voltage 50 V
Max. current 5.6 A
Configurable via RS232 cable
Interface Modbus RS485
Your Dynamic Snippet will be displayed here... This message is displayed because you did not provided both a filter and a template to use.
