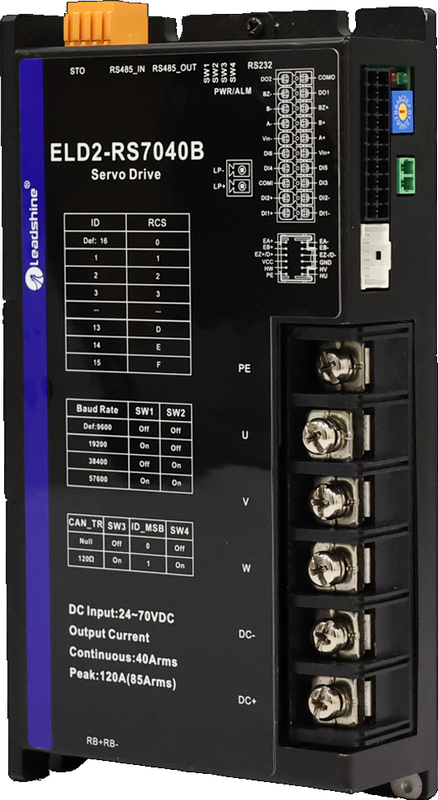

ELD2-RS7040B brushless DC drive 24-70V 40A

40A nominal
Modbus interfaces RS485/Pulses+Dir.
STO function
1 analog input.
5 digital inputs
2 digital outputs including 1 brake output.

299.75 € Without Taxes 299.75 EUR 299.75 €

299.75 €

359.70 € 359.70 € with taxes

  • Brand
  • Axes
  • Analog inputs
  • Analog inputs
  • Brake
  • Min. Voltage
  • Max. Voltage
  • Max. current
  • Interface
  • Interface

This combination does not exist.

Product Documents

Manuel ELD2-RS
Using Modbus with Leadshine RS Drives

ELD2-RS7040B


● Main power voltage: 24-70VDC

● Output current: 40Arms continuous; 120A peak

● Direct brake output: 24VDC/1A

● Pulse+Direction, analog input

● Modbus RTU over RS485. Build-In 16 PR paths

● Encoder AB output

● Dip Switch for node ID, baud rate and terminating resistor settings

● STO function safety

● RS-232 serial interface for easy tuning with Motion Studio

Download the dedicated setting software: Leadshine Motion Studio


Drive modelELD2-RS7040B
Size(mm)194*103*41
Rated power(kW)1.5
Rated current(Arms)40
Peak current(Apeak)120
Main powerVoltage(V)DC24~70
Current(A)40Arms （≤48Vdc）
28Arms（＞48Vdc）
Logic powerVoltage(V)DC24-70
Control powerVoltage(V)DC12-24
Current(mA)≥12
Overload300%
Brake resistorExternal connection
Safe functionSTO
Protection rankIP20



Specifications

Brand Leadshine
Axes 1 Axe
Analog inputs 1, 1
Brake With brake
Min. Voltage 24 V
Max. Voltage 70 V
Max. current 40 A
Interface Modbus RS485, Pulses/direction
