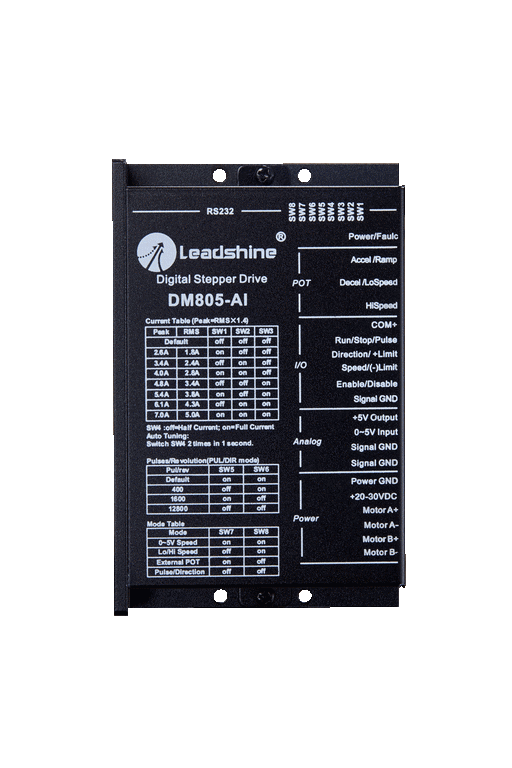

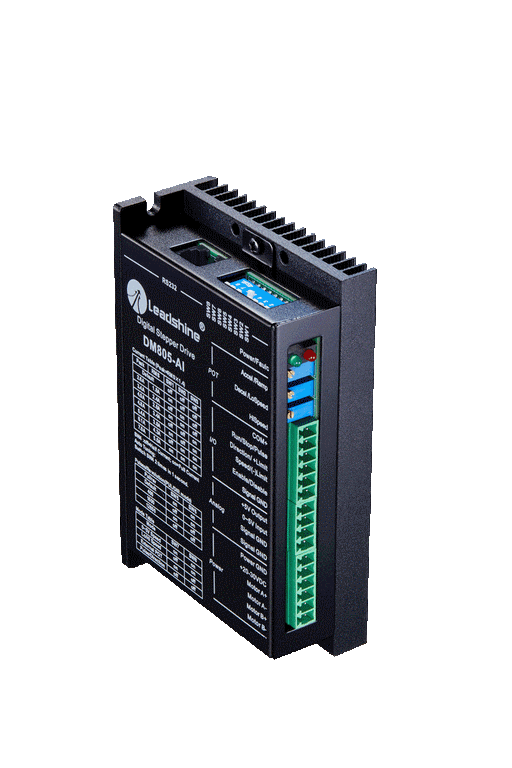

DM805-AI standalone stepper driver

Standalone digital driver 80V/7A

119.00 € Without Taxes 119.0 EUR 119.00 €

119.00 €

142.80 € 142.80 € with taxes

  • Brand
  • Axes
  • Min. Voltage
  • Max. Voltage
  • Max. current
  • Resolution setting
  • Configurable
  • Weight

This combination does not exist.

En rupture de stock

Product Documents

Exemple utilisation DM805 pour déplacement manuel limité par 2 fin de course
Protuner software DM805-AI
Manuel rapide DM805-AI
Datasheet DM805-AI
Installation DM805-AI
Manuel DM805-AI

Internal Reference: DM805-AI

Microstep driver with an integrated speed profile generator.

This driver is ideal for basic motion applications in velocity mode.

The typical use of this driver is to control the rotation of a stepper motor using on/off commands from manual switches or PLC outputs. The integrated potentiometers make it possible to adjust the speeds of rotation as well as the acceleration.

Electrical specs

Parameter

Min

Typical

Max

Unit

Power voltage

18

60

80

VDC

Max pulse frequency

0

-

200

kHz

Current for logic signals

7

10

16

mA

Insulation resistance

500

-

-


Speed control

Parameters

Specifications

Dead zone

Resolution

Min

Max

Analog Input

0-5V Speed Mode

0-5 V

10 mV

10 mV

0 Rev/s

25 ± 0.5 Rev/s

External POT Mode

20 mV

Accel / Decel / Ramp Potentiometer

0-25 turns

10 mV

10 mV

0.5 Rev/s2

250 ± 1 Rev/s2

LoSpeed Potentiometer

0-25 turns

10 mV

10 mV

0 Rev/s

5 ± 0.01 Rev/s

HiSpeed Potentiometer

0-25 turns

10 mV

10 mV

0 Rev/s

25 ± 0.5 Rev/s


Working conditions

Cooling

Natural or forced

Operating Environment

Environment

Avoid dust, oil fog and corrosive gases

Storage Temperature

-20 °C - 65 °C (-4°F - 149 °F )

Ambient Temperature

0°C- 50 °C (32 °F- 122°F)

Humidity

40%RH - 90%RH

Operating Temperature (Heat Sink)

70 °C (158 °F) Max

Vibration

10-55Hz, 0.15mm/s

Storage Temperature



Operating modes :




Accessories

Your Dynamic Snippet will be displayed here... This message is displayed because you did not provided both a filter and a template to use.

Specifications

Brand Leadshine
Axes 1 Axe
Min. Voltage 20 V
Max. Voltage 80 V
Max. current 5 A
Resolution setting DIP-switches
Configurable via RS232 cable
Weight 280 gr
