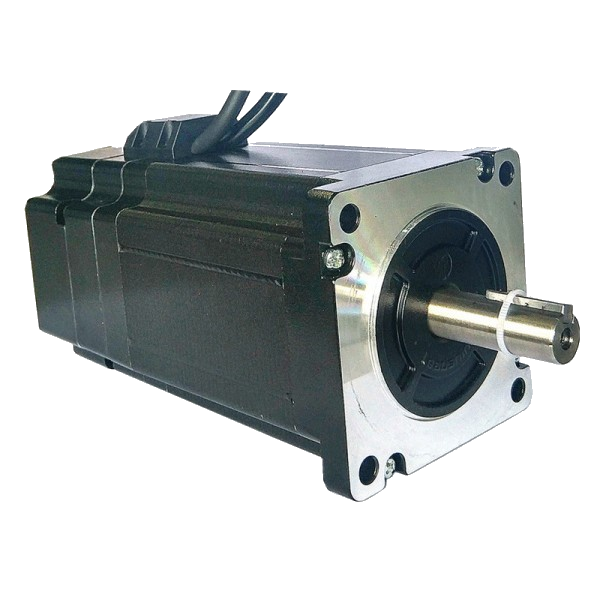

The CS-M23445B is a 2 phase stepper motor with 4.5 N.m (638 oz-in) holding torque and integrated with a 1,000 line (4,000 counts/revolution) differential ended rotary encoder.
Build with high quality materials including bearings and shaft made by Japanese manufacturers, this closed loop stepper motor can be adopted in many industrial applications with excellence performance such as high precision, low motor heating, and low vibration.
- 2 phase, NEMA 34 frame size
- 109 mm (4.29 inch) long
- 6 A phase current
- 4.5 N.m (638 oz-in) holding torque
- 14 mm (0.551 inch) shaft size
- Integrated 1,000 line (4,000 count/revolution) quadrature rotary encoder
| CS-M23445B | |
|---|---|
| Frame Size | NEMA 34 |
| Phases | 2 |
| Step angle | 1.8° |
| Accuracy | ±0.9° |
| Body length | 144 mm (45.67 inch) |
| Number of leads | 4 |
| Holding torque | 4.5N.m (638 oz-in) |
| Phase current | 6 A/Phase |
| Encoder resolution | 1000 points(4000 pulses/revolution) |
| Voltage | 2.6 V |
| Resistance | 0.43 Ω |
| Inductance | 2.95 mH |
| Rotor inertia | 1.4 kg-cm2 (0.00736 oz-in-sec2 ) |
| Shaft diameter | 14 mm (0.551 inch) |
| Shaft type | simple |
| Weight | 4 kg |
| Insulation class | B |
| Insulation resistance | Min 100 MΩ,500 VDC) |
| Operating Temperature | -10 - 50°C (14 - 122°F) |
| Temperature Rise (Max) | 80K |
| Radial play | Max 0.02 mm (with 450grs load) |
| Axial play | Max 0.08 mm (with 900grs load) |
Accessories
Your Dynamic Snippet will be displayed here... This message is displayed because you did not provided both a filter and a template to use.
Specifications
| Brand | Leadshine, Soprolec |
| NEMA | 34 |
| Torque | 4.5 Nm, 4.5 Nm |
| Number of phases | 2 |
| Shaft diameter | 14 mm |
| Current per phase | 6 A |
| Phase resistance (Ohms) | 0.43 Ohm |
| Phase inductance (mH) | 2.95 mH |
| Step angle | 1.8° |
| Rotor inertia | 1.4 kg/cm2 |
| Body length | 144 mm |
| Brake | With brake |
| Encoder resolution | 1000 points (4000 pulses/rotation) |
| Weight | 4.0 kg |
