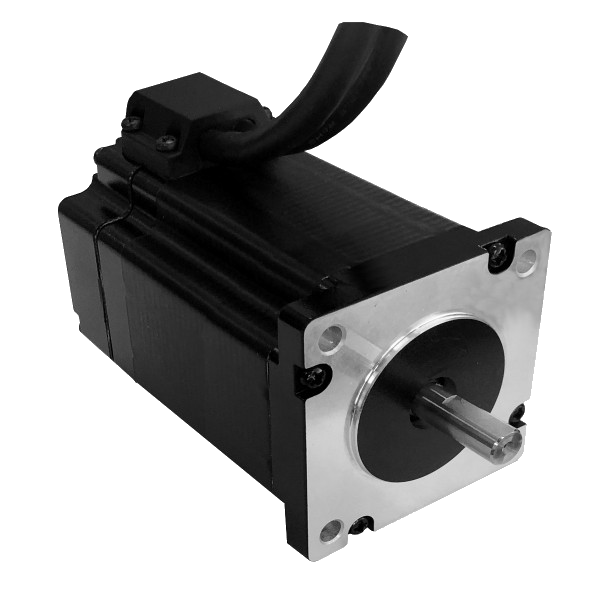

The CS-M22331-L is a 2 phase stepper motor with 3.1 N.m holding torque and integrated with a 1,000 line (4,000 counts/revolution) differential ended rotary encoder. Build with high quality materials including bearings and shaft made by Japanese manufacturers, this closed loop stepper motor can be adopted in many industrial applications with excellence performance such as high precision, low motor heating, and low vibration. est un moteur pas à pas 2 phases offrant un couple de maintien de 3.1 Nm et équipé d'un encodeur différentiel de 1000 points (soit 4000 pulses/tour).
- 2 phase, NEMA 23 frame size
- 105 mm (4.1 inch) long
- 6 A phase current
- 3.1 N.m holding torque
- 8 mm (0.315 inch) shaft diameter
| CS-M22331-L | |
|---|---|
| Frame Size | NEMA 23 |
| Phases | 2 |
| Step Angle | 1.8° |
| Accuracy | ±0.9° |
| Length | 105 mm (4.1 inch) |
| Number of Wires | 4 |
| Holding Torque | 3.1 N.m |
| Phase Current | 6 A/Phase |
| Encoder Resolution | 1000 points(4000 pulses/revolution) |
| Voltage | 1.6 V |
| Resistance | 0.26 Ω |
| Inductance | 1.18 mH |
| Rotor Inertia | 0.84 kg-cm2 (0.00736 oz-in-sec2 ) |
| Shaft diameter | 8 mm (0.315 inch) |
| Shaft type | single |
| Weight | 1.6 kg (3.52 lb) |
| Insulation class | B |
| Insulation resistance | Min 100 MΩ,500 VDC) |
| Operating Temperature | -10 - 50°C (14 - 122°F) |
| Temperature Rise (Max) | 80K |
| Radial play | Max 0.02 mm (with a 450grs load) |
| Axial play | Max 0.08 mm (with a 900grs load) |
Accessories
Your Dynamic Snippet will be displayed here... This message is displayed because you did not provided both a filter and a template to use.
Specifications
| Brand | Leadshine, Soprolec |
| NEMA | 23 |
| Torque | 3.1 Nm |
| Number of phases | 2 |
| Shaft diameter | 8 mm |
| Current per phase | 6 A |
| Phase resistance (Ohms) | 0.26 Ohm |
| Phase inductance (mH) | 1.18 mH |
| Step angle | 1.8° |
| Rotor inertia | 0.84 k/cm2 |
| Body length | 105 mm |
| Brake | Without brake |
| Encoder resolution | 1000 points (4000 pulses/rotation) |
| Weight | 1.6 kg |
