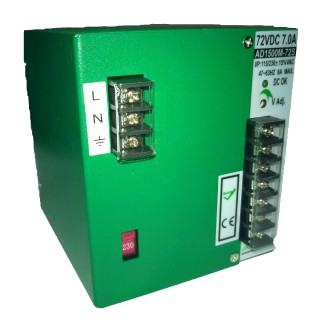

72V 500W (7A) - DIN rail power supply
DIN rail 72V / 7A power supply
Power output 500W - Input voltage 90-264V AC
Overvoltage, overcurrent and short circuit protections
Dimensions: 111 (D) x 110 (W) x 110 (H) mm
Internal Reference:
AAD1500M-72S
72V/500W switching power supply for DIN rail or panel mounting.
Robust power supply range for industrial applications and specifically designed to power motorized assemblies.
The integration of various protection circuits makes it possible to protect equipment against voltages induced by inductive circuits.
Technical specs:
- Input voltage: 90VAC to 264VAC
- Input voltage frequency: 47 to 63Hz
- Output voltage 72VDC (+/-10% adjustable by potentiometer)
- Number of output channels: 1
- Max. output current:7A (10.5A peak)
- Max. output power: 500W
- Overvoltage, overcurrent and short circuit protections
- Commutation frequency: 100 KHz
- Operating temperature: -10°C to 70°C
- Efficiency: 82%
- Heigth: 110mm
- Width: 110mm
- Depth: 111mm
- Weight: 1.36kg
- Certification: CE, EN
Specifications
| Brand | ACRO |
| Power | 500 W |
| Current | 7 A |
| Voltage | 72 V |
