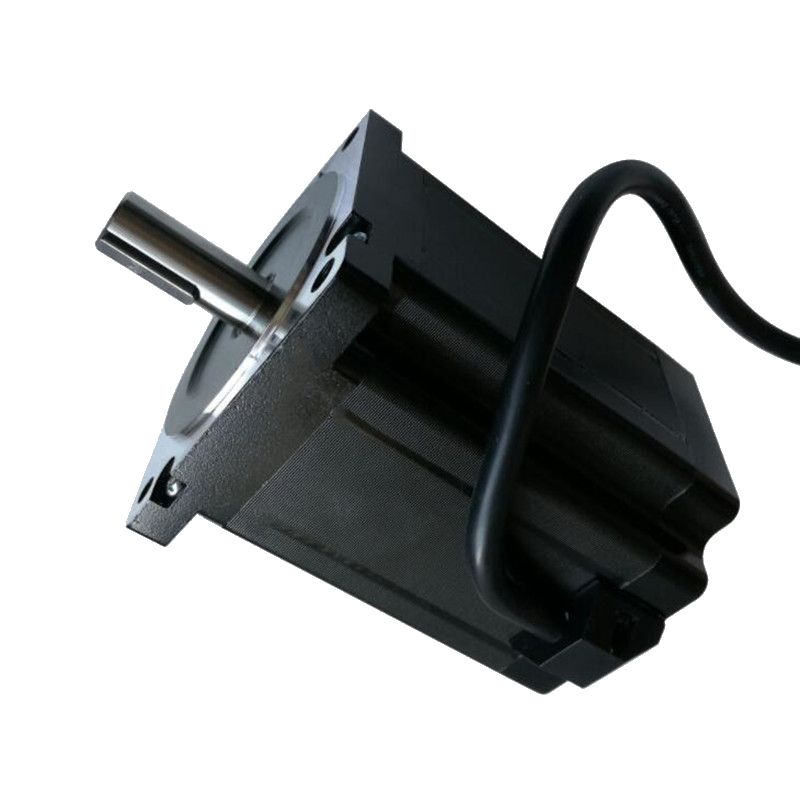

8.5Nm Bipolar Stepper Motor
Stepper Motors 86HS85S is part of a range of motors designed for high performance applications. Product quality is ensured by ISO9001-2000 certified quality control.
Angular resolution | 1.8° |
Step positioning accuracy | +5%(full step, no load) |
Max temperature | 80°CMax |
Operating temperature | -20°C -- +50°C |
Insulation resistance | 100MΩmin.500VDC |
Dielectric strength | 500VAC for 1 minute |
Shaft diameter | 14mm + key |
Shaft lengtht | 32mm |
Shaft radial backlash | 0.06 Max.(under 450grs load) |
Shaft axial backlash | 0.08 max.( under 450grs load) |
Number of wires |
4 |
Model |
Wiring |
Holding torque |
Phase current (A) |
Phase resistance (Ohm) |
Phase Inductance (mH) |
Poids kg |
86HS85S |
Bipolar |
8.5 |
6.0 |
0.51±10% |
5.10±20% |
3.8 |
Accessories
Your Dynamic Snippet will be displayed here... This message is displayed because you did not provided both a filter and a template to use.
Specifications
Cable length | 0.5 m or 3 m |
NEMA | 34 |
Torque | 8.5 mm |
Number of phases | 2 |
Current | 6 A |
Shaft diameter | 14 mm |
Shaft length | 32 mm |
Phase resistance (Ohms) | 0.51 Ohm |
Phase inductance (mH) | 5.1 mH |
Step angle | 1.8° |
Body length | 114 mm |
Brake | Without brake |
Weight | 3.7 kg |
