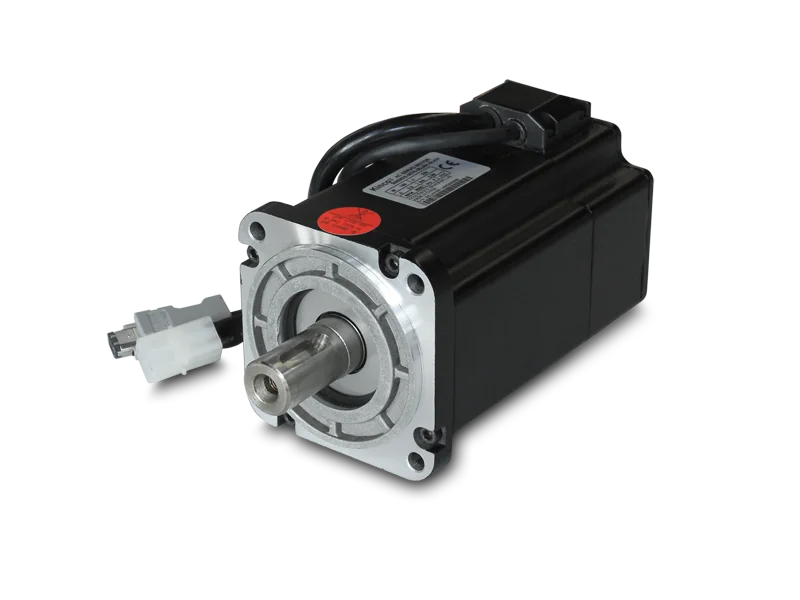

Kinco AC Brushless Servo 80mm - 750W - Series 3
Kinco brushless servo motor 750W / 3000rpm
Nominal torque 2.39 Nm, Max 7.17 Nm
Incremental encoder (MAK), or absolute multi-turn (KAK), or single-turn 20bit (JAK)
Connectors on cables (-GU and -KL-Y)
Shaft diameter: 19mm
| 750W brushless servomotor | Encoder type | Weight (Kg) | Length L(mm) |
| SMC80S-0075-30MAK-3LSU | Incremental magnetoelectric encoder | 2.8 |
128.5 +-1.5
|
| SMC80S-0075-30JAK-3LSU | 20bit single turn encoder | 2.8 | 128.5 +-1.5 |
| SMC80S-0075-30KAK-3LKU | Multiturn absolute encoder | 2.8 | 139 +-1.5 |
| Flange (mm) | 80 |
| Shaft diameter (mm) | 19 |
| DC bus voltage (V) | 300 |
| Continuous operating performance | Rated power 750 W |
| Nominal torque (Nm) | 2.39 |
| Nominal speed (Rpm) | 3000 |
| Rated current (A) | 3.8 |
| Maximum torque (Nm) | 7.17 |
| Max current (A) | 11.4 |
| Standstill torque (Nm) | 2.63 |
| Current at stop (A) | 4.2 |
| Winding resistance (ohm) | 2.1 |
| Winding inductance (mH) | 10.5 |
| Electrical time constant (ms) | 5 |
| Constante de temps mécanique (ms) | 0.9 |
| Mechanical time constant (ms) | 40 |
| Constant torque (Nm/A) | 0.662 |
| Motor moment of inertia (Kg.cm2) | 1.087 |
| Brake holding torque | 3.2 |
| Number of pole pairs | 3 |
| Maximum transient voltage du/dt (KV/us) | 8 |
| Insulation class | F |
| Maximum radial force (N) | 335 |
| Maximum axial force (N) | 167.5 |
| Cooling | Completely closed, uncooled |
| Protection sign | IP65 for motor body, IP54 for axes |
| Environmental operating conditions |
-20°C ~ 40°C (non-freezing)
|
| Humidity | Below 90% RH (non-condensing) |
| Keep away from active and combustible gases, oil splashes and dust | |
| Altitude | Max altitude 4000m |
Accessories
Your Dynamic Snippet will be displayed here... This message is displayed because you did not provided both a filter and a template to use.
Specifications
| Encoder type | 20 bits single turn encoder or Incremental encoder or Multiturn absolute encoder |
| Brand | Kinco |
| Torque | 2.39 Nm (7.17 Nm peak) |
| Power | 750 W |
| Voltage | 230 VAC |
| Brake | Without brake |
| Frame size | 80 mm |
