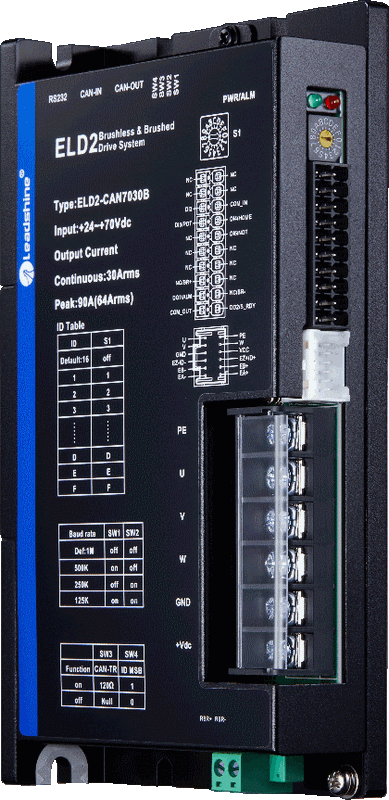

ELD2-CAN7030B
● Main power voltage: 24-70VDC
● Output current: 30Arms continuous; 90A peak
● Direct brake output: 24VDC/1A
● Pulse+Direction, analog input
● Modbus RTU over RS485. Build-In 16 PR paths
● Encoder AB output
● Dip Switch for node ID, baud rate and terminating resistor settings
● RS-232 serial interface for easy tuning with Motion Studio
Download the dedicated setting software: Leadshine Motion Studio
| Drive model | ELD2-CAN7030B | |
| Size(mm) | 175*101.5*31 | |
| Rated power(kW) | 1.2 | |
| Rated current(Arms) | 30 | |
| Peak current(Apeak) | 90 | |
| Main power | Voltage(V) | DC24~70 |
| Current(A) | 30Arms （≤48Vdc） | |
| 21Arms（＞48Vdc） | ||
| Logic power | Voltage(V) | —— |
| Control power | Voltage(V) | DC12-24 |
| Current(mA) | ≥12 | |
| Overload | 300% | |
| Brake resistor | External connection | |
| Safe function | —— | |
| Protection rank | IP20 |
Specifications
| Brand | Leadshine |
| Analog inputs | 1 |
| Brake | With |
| Min. Voltage | 24 V |
| Max. Voltage | 70 V |
| Max. current | 30 A |
| Interface | CANopen |
