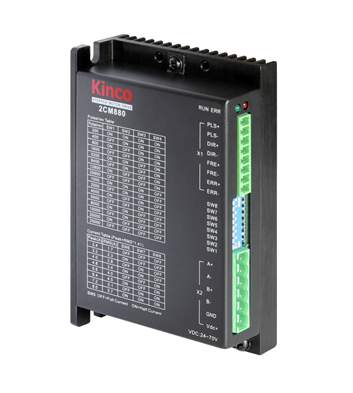

2CM880 Digital stepper driver - 80V 8A Kinco

2CM880 Digital stepper driver - 80V 8A Kinco

2CM880 Microstep Driver - 70V 8A
- 8 levels of current adjustment from 2.4~8A
- 15 levels of resolution from 200~25,600 steps
- Inputs (Pulses/Dir or CW/CCW) 5~24V optocoupled with internal limiting resistor, TTL compatible
- Pulse input frequency up to 400KHz
- Motor parameters self-identification system
- Automatic current reduction in case of inactivity
- Overvoltage and overcurrent protection

119.00 € Without Taxes 119.0 EUR 119.00 €

119.00 €

~~142.80 €~~ 142.80 € with taxes

Brand
Max. Voltage
Max. current
Resolution setting
- DIP-switches

This combination does not exist.

AJOUTER AU PANIER

Product Documents

Datasheet 2CM880
You have to login to access this document.

Manuel 2CM880
You have to login to access this document.

Internal Reference: 2CM880

Driver Micropas 2CM880

Digital Microstep Driver 2CM880
15 subdivision levels 200~25 600 steps
Inputs (Pulses/Dir or CW/CCW) 5~24V opto isolated, TTL signal compatible
Input frequency up to 400kHz
Support parameter self-adaptive function
Automatic half-current function
Test running function
Over voltage and over current protection function
Micro-step filter function can smooth input pulse to reduce trasient motion of motor, make sure motor run more smoothly
Nema 23 end Nema 34 motors compatible

Item	Description
Input Voltage	24~70VDC
Overvoltage protection	85VDC
UnderVoltage protection	15VDC
OverHeat protection	80°C (Température of Thermistor)
Phase current (peak)	2.4/3.2/4/4.8/5.69/6.4/7.2/8 A – 8 settable values
Subdivision	200~25600 Pulses / tour - 15 subdivision levels in total
Adaptable Motors	Nema 23 and Nema 34

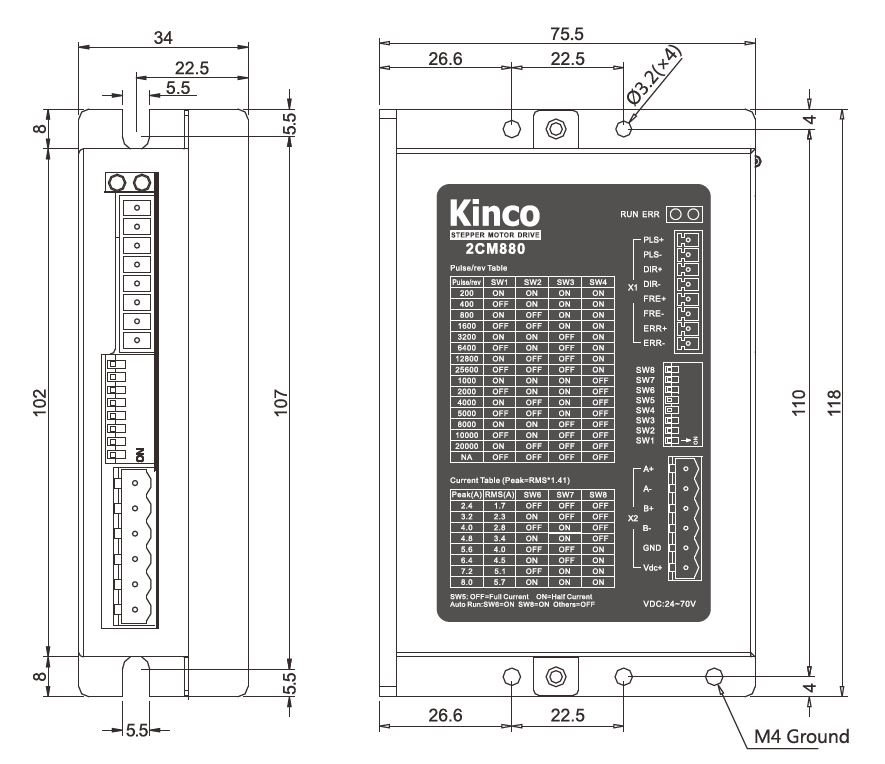

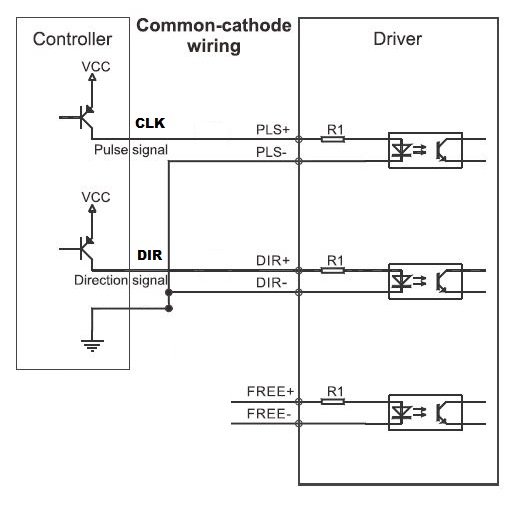

Input Signals	PLS (CW) - DIR (CCW) – FREE – Input voltage : 5~24VDC – Input current : 8mA@5VDC / 12mA@24VDC
Control Mode	Pulse control : PLS + DIR – CW/CCW
Output signal	ERR - open collector output – maximum current : 100mA
Operation Indicator	Combination of RUN and ERR Led indicates different status
Protection Circuit	Over voltage – Under voltage – Over current – Over heat
Cooling method	Natural air cooling
Operation environnement	Indoor - installed in the environnement free from direct sunlight – dust – corrosive gas – combustible gas – oil mist – steam and drip
Operation humidity	<85%RH – non-condensing or water drops
Operation temperature	0°C~40°C
Storage temperature	-20°C~70°C
Protection	IP20

Subdivision setting (Unit : Pulses/Rev.)					Current setting (Unit:A)
SW1	SW2	SW3	If SW4=ON	If SW4=OFF	SW6	SW7	SW8	RMS	Peak
ON	ON	ON	200	1000	ON	ON	ON	5.7	8
OFF	ON	ON	400	2000	OFF	ON	ON	5.1	7.2
ON	OFF	ON	800	4000	ON	OFF	ON	4.5	6.4
OFF	OFF	ON	1600	5000	OFF	OFF	ON	4	5.6
ON	ON	OFF	3200	8000	ON	ON	OFF	3.4	4.8
OFF	ON	OFF	6400	10000	OFF	ON	OFF	2.8	4
ON	OFF	OFF	12800	20000	ON	OFF	OFF	2.3	3.2
OFF	OFF	OFF	25600	NA	OFF	OFF	OFF	1.7	2.4

Function	DIP setting	Description
PLS + DIR	SW6 & SW7 = ON – Others OFF	Set DIP switches according to functions required when power OFF. Power On driver : RUN Led blinking is GREEN & ERR Led is RED. It means settings takes effect. Then Power OFF driver – reset subdivision and current for normal use
CW/CCW	SW7 & SW8 = ON – Others OFF
Micro-Step smooth & dynamic filter disable	SW5 & SW6 = ON – Others OFF
Micro-Step smooth filter enable	SW5 & SW7 = ON – Others OFF
Micro-Step dynamic filter enable	SW5 & SW8 = ON – Others OFF
Test motor parameter upon power on disable	SW6 & SW7 & SW8 = ON – Others OFF
Test motor parameter upon power on enable	SW5 & SW6 & SW7 = ON – Others OFF
Test running function	SW6 & SW8 = ON – Others OFF	Motor running @80RPM
Automatic half-current	SW5 = ON – Others OFF	Set SW5=ON to enable automatic half-current. Phase current will reduce to half of the set value after motor stops for 1.5s
