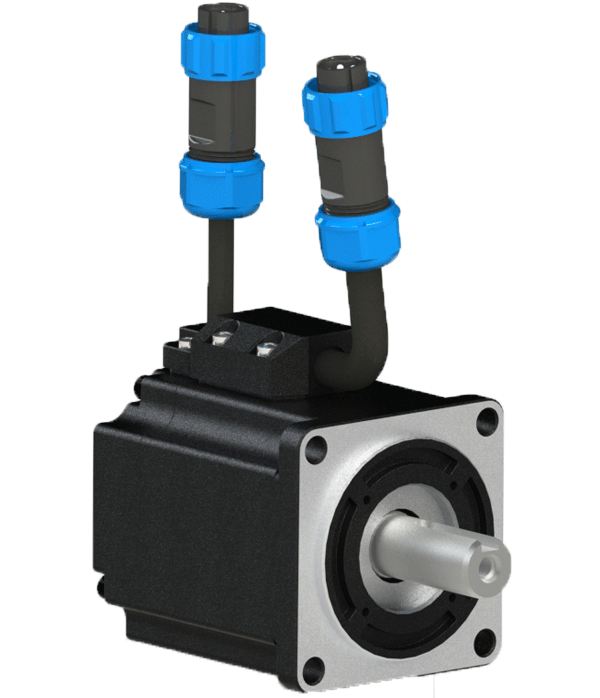

ELVM6040V24xH-M17-HD
● Frame 60mm, rated torque 1.27N·m, rated speed 3000r/min
● No Brake
● Insulation class: Class F
● 17 bit magnetic multi-turn absolute encoder
● IP65
| Model | ELVM6040V24FH-M17-HD / ELVM6040V24EH-M17-HD |
| Frame Size (mm) | 60 |
| Rated Voltage (Vac) | 24 |
| Rated Power (W) | 400 |
| Rated Torque (N.m) | 1.27 |
| Peak Torque (N.m) | 3.81 |
| Rated Speed (rpm) | 3000 |
| Peak Speed (rpm) | 4000 |
| Rated Current (Amp) | 19.9 |
| Peak Current (Amp) | 61.7 |
| Torque Constant (N.m/Amp) | 0.068 |
| Back EMF Constant (V/krpm) | 4.1 |
| Resistance (Ω) | 0.07 |
| Inductance (mH) | 0.14 |
| Inertia (kg*m2*10-4) | 0.58 |
| Poles | 10 |
| Encoder Type | 17bit magnetic |
| Max radial load(N) | 245 |
| Max axial load(N) | 74 |
| IP Rating | IP65 |
| Weight (Kg) | 1.4 / 1.8 |
Spécifications
| Frein | Sans frein ou Avec frein |
| Marque | Leadshine |
| Couple | 1.27 Nm (3.81 Nm en pointe) |
| Puissance | 400 W |
| Courant | 20 A |
| Tension | 24 V |
| Diamètre de l'arbre | 14 mm |
| Vitesse nominale | 3000 rpm |
| Taille du carré | 60 mm |
| Type de codeur | 17 bit absolu multitours magnétique |
