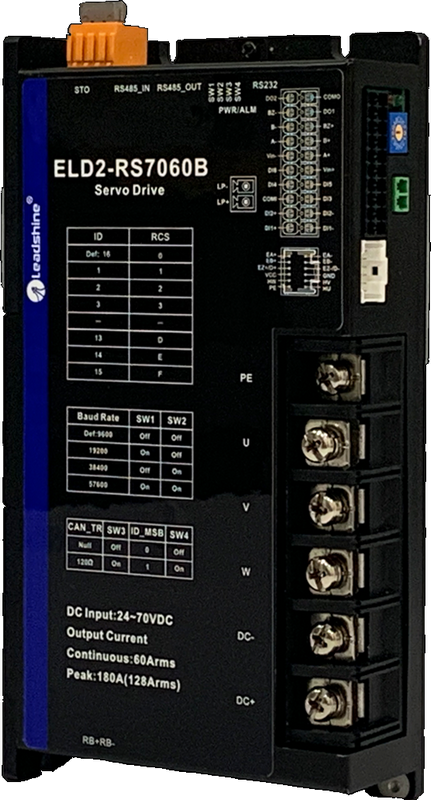

ELD2-RS7060B Variateur Brushless DC 24-70V 60A Modbus

60A nominal
Interfaces Modbus RS485/Pulses+Dir.
Fonction STO
1 entrée analogique.
5 entrées TOR
2 sorties TOR dont 1 sortie frein.

349,75 € HT 349.75 EUR 349,75 €

349,75 €

419,70 € 419,70 € TTC

  • Marque
  • Axes
  • Entrées analogiques
  • Frein
  • Tension mini
  • Tension maxi
  • Courant maxi
  • Interface / Bus
  • Interface / Bus

Cette combinaison n'existe pas.


Référence interne: ELD2-RS7060B

ELD2-RS7060B


● Main power voltage: 24-70VDC

● Output current: 60Arms continuous; 180A peak (2 secs)

● Direct brake output: 24VDC/1A

● Pulse+Direction, analog input

● Modbus RTU over RS485. Build-In 16 PR paths

● Encoder AB output

● Dip Switch for node ID, baud rate and terminating resistor settings

● STO function safety

● RS-232 serial interface for easy tuning with Motion Studio


Drive modelELD2-RS7060B
Size(mm)194*103*41
Rated power(kW)2.0
Rated current(Arms)60
Peak current(Apeak)180
Main powerVoltage(V)DC24~70
Current(A)60Arms (≤48Vdc)
28Arms(>48Vdc)
Logic powerVoltage(V)DC24-70
Control powerVoltage(V)DC12-24
Current(mA)≥12
Overload300%
Brake resistorExternal connection
Safe functionSTO
Protection rankIP20



Spécifications

Marque Leadshine
Axes 1 Axe
Entrées analogiques 1
Frein Avec
Tension mini 24 V
Tension maxi 70 V
Courant maxi 60 A
Interface / Bus Modbus RTU / RS485, Pulses/direction
