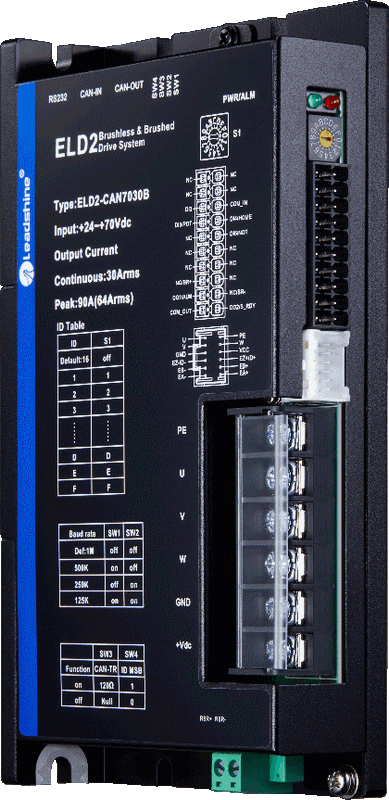

ELD2-CAN7030B Variateur Brushless DC 24-70V 30A

ELD2-CAN7030B Variateur Brushless DC 24-70V
30A Max. sous 48V (1200W)
21A Max si >48V
CANopen/Pulses+Dir.
1 entrée analogique. 1 sortie frein.

297,20 € HT 297.2 EUR 297,20 €

297,20 €

356,64 € 356,64 € TTC

  • Marque
  • Entrées analogiques
  • Frein
  • Tension mini
  • Tension maxi
  • Courant maxi
  • Interface / Bus

Cette combinaison n'existe pas.


Référence interne: ELD2-CAN7030B

ELD2-CAN7030B

● Main power voltage: 24-70VDC

● Output current: 30Arms continuous; 90A peak

● Direct brake output: 24VDC/1A

● Pulse+Direction, analog input

● Modbus RTU over RS485. Build-In 16 PR paths

● Encoder AB output

● Dip Switch for node ID, baud rate and terminating resistor settings

● RS-232 serial interface for easy tuning with Motion Studio



Drive modelELD2-CAN7030B
Size(mm)175*101.5*31
Rated power(kW)1.2
Rated current(Arms)30
Peak current(Apeak)90
Main powerVoltage(V)DC24~70
Current(A)30Arms (≤48Vdc)
21Arms(>48Vdc)
Logic powerVoltage(V)——
Control powerVoltage(V)DC12-24
Current(mA)≥12
Overload300%
Brake resistorExternal connection
Safe function——
Protection rankIP20



Spécifications

Marque Leadshine
Entrées analogiques 1
Frein Avec
Tension mini 24 V
Tension maxi 70 V
Courant maxi 30 A
Interface / Bus CANopen
