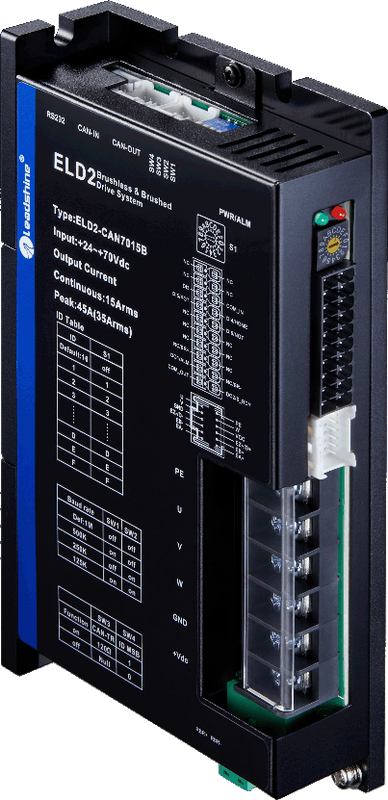

ELD2-CAN7015B Variateur Brushless DC 24-70V 15A
ELD2-CAN7015B Variateur Brushless DC 24-70V 15A - CANopen/Pulses+Dir.
1 entrée analogique. 1 sortie frein.
Référence interne:
ELD2-CAN7015B
ELD2-CAN7015B
● Main power voltage: 24-70VDC
● Output current: 15Arms continuous; 45A peak
● Direct brake output: 24VDC/1A
● Pulse+Direction, analog input
● CANopen. Build-In 16 PR paths
● Encoder AB output
● Dip Switch for node ID, baud rate and terminating resistor settings
● RS-232 serial interface for easy tuning with Motion Studio
| Drive model | ELD2-CAN7015B | |
| Size(mm) | 175*101.5*31 | |
| Rated power(kW) | 0.6 | |
| Rated current(Arms) | 15 | |
| Peak current(Apeak) | 45 | |
| Main power | Voltage(V) | DC24~70 |
| Current(A) | 15Arms （≤48Vdc） | |
| 11Arms（＞48Vdc） | ||
| Logic power | Voltage(V) | —— |
| Control power | Voltage(V) | DC12-24 |
| Current(mA) | ≥12 | |
| Overload | 300% | |
| Brake resistor | External connection | |
| Safe function | —— | |
| Protection rank | IP20 |
Spécifications
| Marque | Leadshine |
| Axes | 1 Axe |
| Puissance | 750 W |
| Tension | 24 V |
| Entrées analogiques | 1 |
| Frein | Avec |
| Courant maxi | 15 A |
| Interface / Bus | CANopen |
