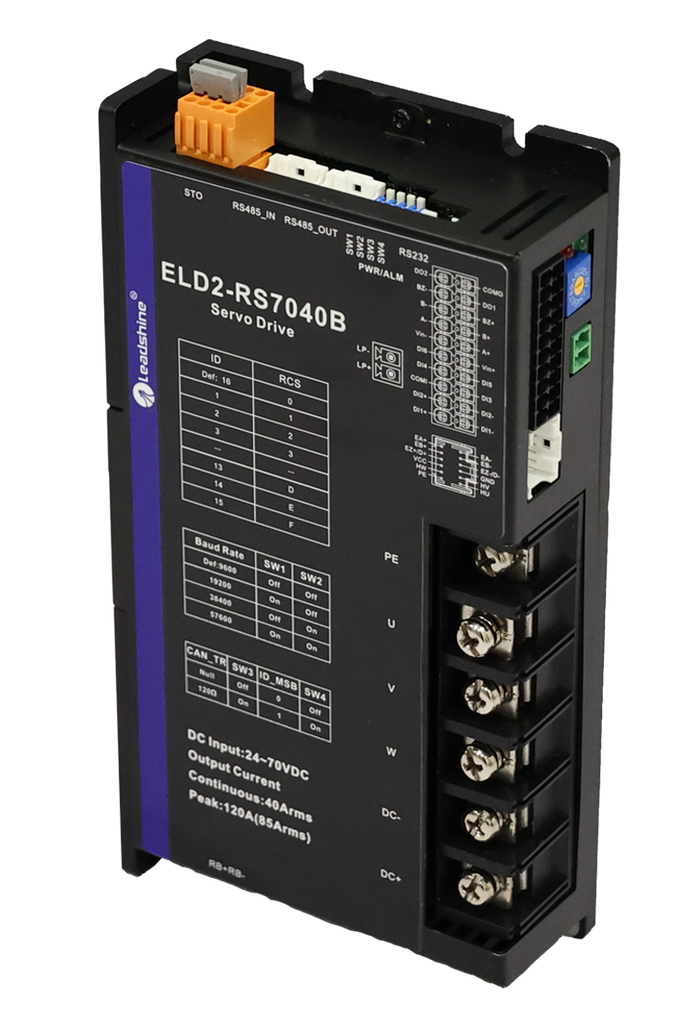

ELD2-RS7040B Variateur Brushless DC 24-70V 40A

40A nominal
Interfaces Modbus RS485/Pulses+Dir.
Fonction STO
1 entrée analogique.
5 entrées TOR
2 sorties TOR dont 1 sortie frein.

299,75 € HT 299.75 EUR 299,75 €

299,75 €

359,70 € 359,70 € TTC

  • Marque
  • Axes
  • Entrées analogiques
  • Entrées analogiques
  • Frein
  • Tension mini
  • Tension maxi
  • Courant maxi
  • Interface / Bus
  • Interface / Bus

Cette combinaison n'existe pas.

Téléchargements :

Manuel ELD2-RS
Using Modbus with Leadshine RS Drives

ELD2-RS7040B


● Main power voltage: 24-70VDC

● Output current: 40Arms continuous; 120A peak

● Direct brake output: 24VDC/1A

● Pulse+Direction, analog input

● Modbus RTU over RS485. Build-In 16 PR paths

● Encoder AB output

● Dip Switch for node ID, baud rate and terminating resistor settings

● STO function safety

● RS-232 serial interface for easy tuning with Motion Studio

Download the dedicated setting software: Leadshine Motion Studio


Drive modelELD2-RS7040B
Size(mm)194*103*41
Rated power(kW)1.5
Rated current(Arms)40
Peak current(Apeak)120
Main powerVoltage(V)DC24~70
Current(A)40Arms (≤48Vdc)
28Arms(>48Vdc)
Logic powerVoltage(V)DC24-70
Control powerVoltage(V)DC12-24
Current(mA)≥12
Overload300%
Brake resistorExternal connection
Safe functionSTO
Protection rankIP20



Spécifications

Marque Leadshine
Axes 1 Axe
Entrées analogiques 1, 1
Frein Avec frein
Tension mini 24 V
Tension maxi 70 V
Courant maxi 40 A
Interface / Bus Modbus RTU / RS485, Pulses/direction
